Toyota Corolla DRL Not Working? Step-by-Step Fix (2019-2021)

What Goes Wrong with the DRLs on Your 2019-2021 Corolla?

The 2019-2021 Toyota Corolla features sleek LED daytime running lights (DRLs) integrated into the headlight housing. Over time, you might notice one or both DRLs become dim, flicker, or stop working entirely. This is often caused by a failed LED driver board or a broken light guide strip. The LED board can overheat or suffer from voltage spikes, while the light guide strip can crack or become cloudy due to UV exposure. Unlike traditional bulbs, these components are sealed inside the headlight, so you can't just swap a bulb—you need to replace the internal parts.

How to Diagnose the Problem

Before tearing apart your headlight, confirm the issue is with the DRL module itself. Start the car and turn on the DRLs. If the low beam and high beam work but the DRL strip is dead or inconsistent, the problem is likely the LED board or light guide. Check for any visible cracks or discoloration on the strip. Also, inspect the wiring harness for corrosion or damage. If you have access to a multimeter, test the voltage at the DRL connector—it should be around 12V. If voltage is present but the light doesn't work, the internal components are faulty. In most cases, replacing the light guide strip and LED board together is the most cost-effective solution.

Step-by-Step Replacement Guide

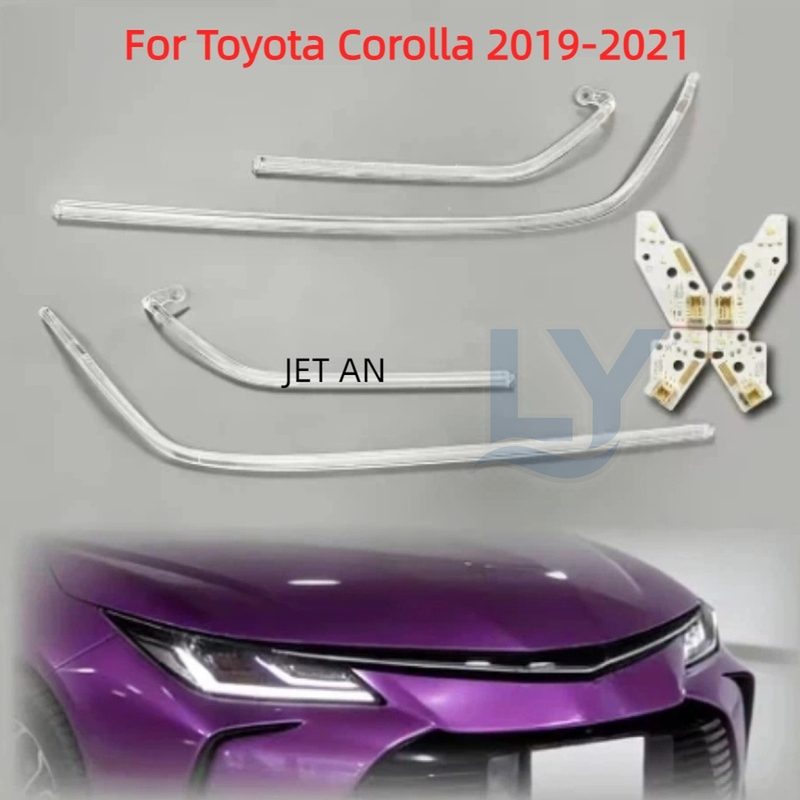

Replacing the DRL components requires removing the headlight assembly. Here's how to do it safely: First, disconnect the negative battery terminal. Then, remove the front bumper clips and screws to access the headlight bolts. You'll typically find three 10mm bolts holding the headlight—one at the top, one at the bottom, and one near the fender. Carefully pull the headlight forward and unplug all connectors. Place the headlight on a clean, soft surface. To open the housing, you'll need to soften the sealant. Use a heat gun or an oven set to 200°F (93°C) for about 10 minutes. Pry the lens off gently with a trim tool. Once open, locate the DRL light guide and LED board. Remove any screws or clips, then carefully lift the old strip and board out. Install the new [Toyota Corolla DRL Light Guide Strip & LED Board (2019-2021)] by placing it in the same position and securing it. Re-seal the headlight with butyl sealant, then reinstall the assembly and reconnect the battery. Test the DRLs before reassembling the bumper.

Fitment Tips and Common Pitfalls

When installing the new light guide, handle it by the edges to avoid fingerprints, which can create hot spots. Ensure the LED board is seated properly and the connectors are fully locked. If you're using an oven to soften sealant, be careful not to overheat—it can warp the plastic. Also, note that some Corolla models have a separate DRL module; if your replacement doesn't work, check that module as well. Time required: about 2-3 hours for a novice, less if you're experienced. If you're not confident in opening the headlight, consider professional installation.

Final Recommendation: Get the Right Part and Save Money

Replacing the DRL light guide and LED board is much cheaper than buying a whole new headlight assembly, which can cost hundreds of dollars. The aftermarket part is designed to match OEM specs and restore your Corolla's look. We recommend the [Toyota Corolla DRL Light Guide Strip & LED Board (2019-2021)] from our store—it's a direct fit and includes everything you need. With this guide, you can tackle the repair yourself and get your DRLs shining bright again. Remember to test everything before reassembling to avoid a second round of work.

Standards & further reading

Reference material for the standards and technology that govern vehicle lighting equipment:

FAQ Q: Both Corolla DRLs went dark at the same time - do I need two boards? A: Boards rarely fail simultaneously, so when both sides die together the fault is usually upstream: the DRL fuse, the control module, or the wiring between them. Check the fuse first (the owner's manual lists the slot), then the module. Only replace the boards once the shared parts test fine. Q: There is moisture inside my Corolla headlight - will a new board survive it? A: Not unless you deal with the moisture first. Water ingress is what usually kills the board, so dry the housing completely, replace the butyl seal and check the vent caps, then fit the new board. A cracked lens means the assembly itself is due.

Standards reference: for the Toyota Corolla, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The swap reinstates exactly the behaviour those standards describe.

Q: Why do the 2019-2021 Corolla DRLs fail so early? A: The daytime running light runs every time the ignition is on, and years of heat cycles crack the solder joints on the LED board. The light guide strip also yellows with UV exposure. Both are separate parts inside the headlight and both are replaceable on their own. Q: Do I have to replace the whole headlight assembly? A: No - only when the lens is cracked or water has been sitting inside the housing. A dim, flickering or dark DRL on an intact headlight is a light guide strip or LED board, and those swap individually. Q: Will a replacement strip or board need coding? A: No. Our parts use factory-matched connectors and are plug-and-play; the swap typically takes 20 to 60 minutes per side.
