BMW G01 DRL Not Working? How to Fix Faded or Dead Daytime Running Lights (2016-2023)

TL;DR

On the 2016-2023 BMW X3 G01, the daytime running lights (DRLs) commonly fail due to a burnt-out LED board or a yellowed, cracked light guide strip inside the headlight. Replacing the DRL light guide and LED board assembly restores proper function and appearance, and it's a plug-and-play job that takes about 1-2 hours with basic tools.

What Is the DRL Light Guide and LED Board?

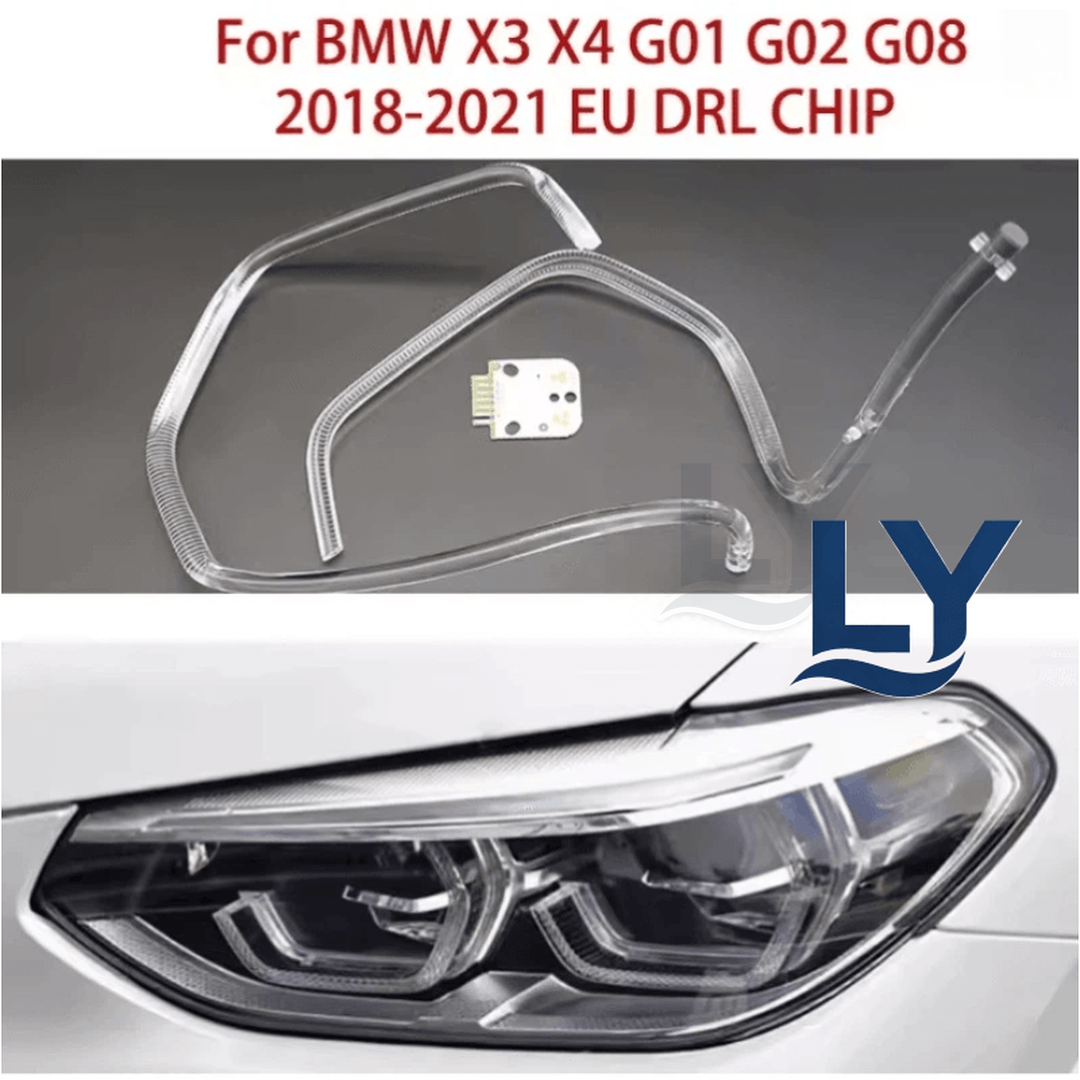

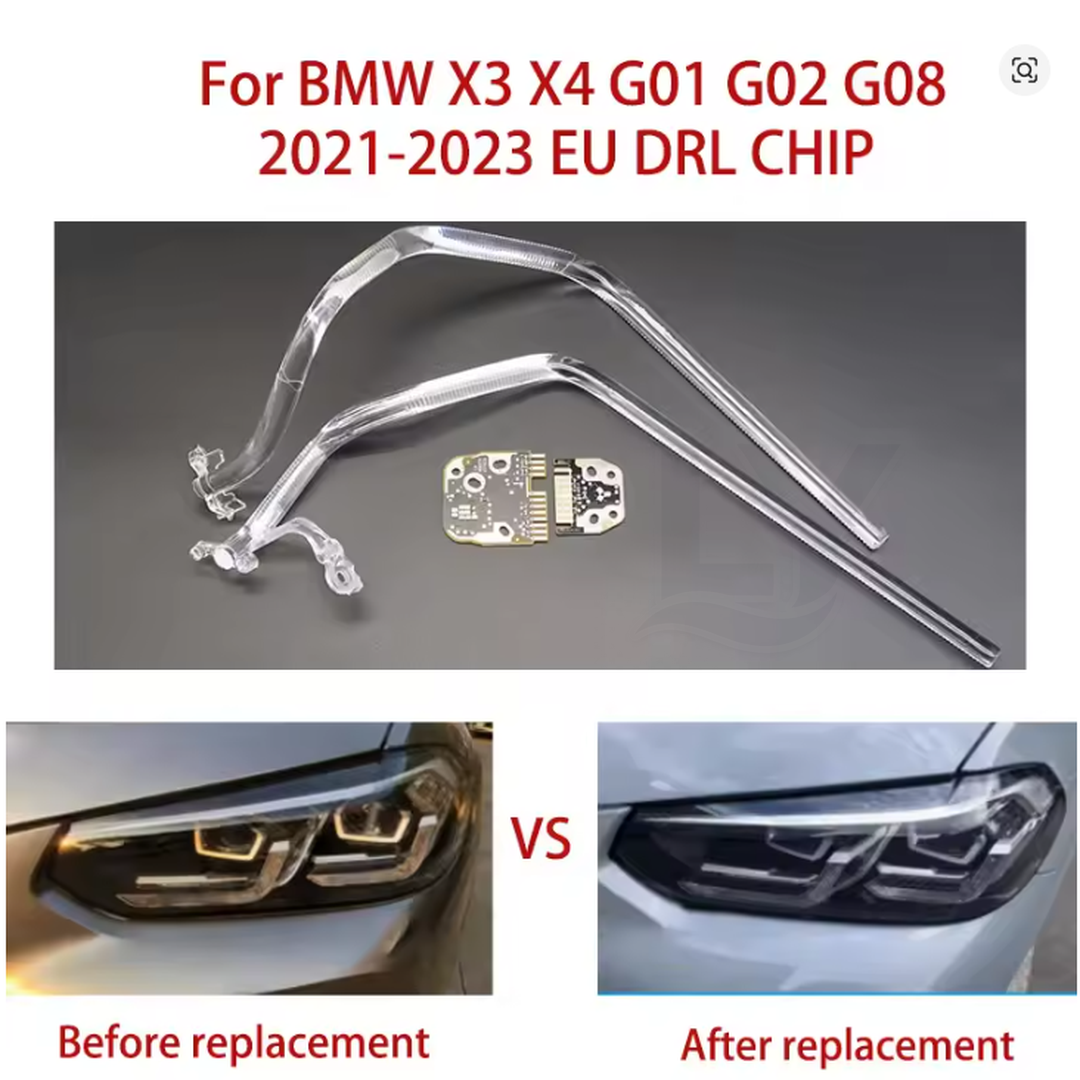

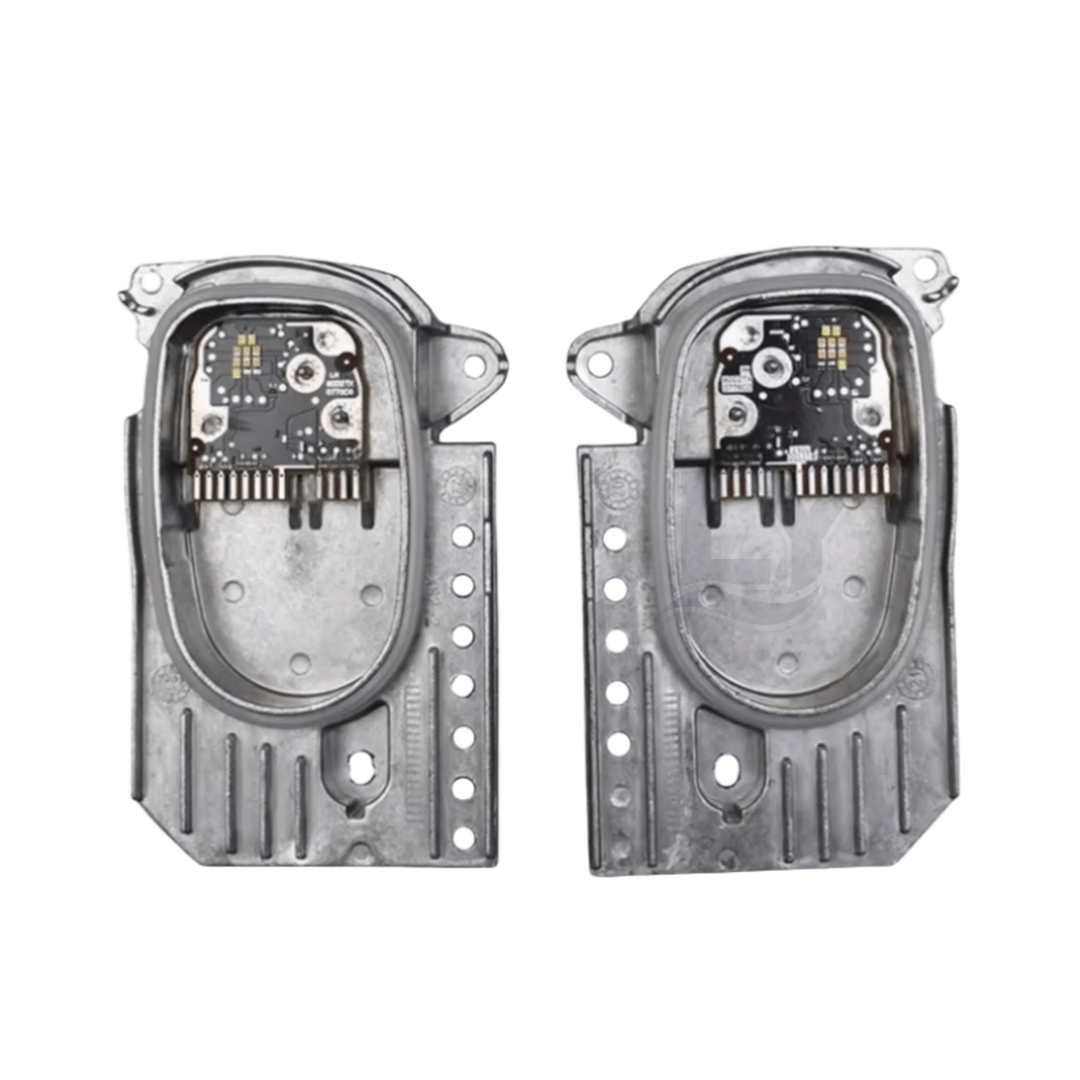

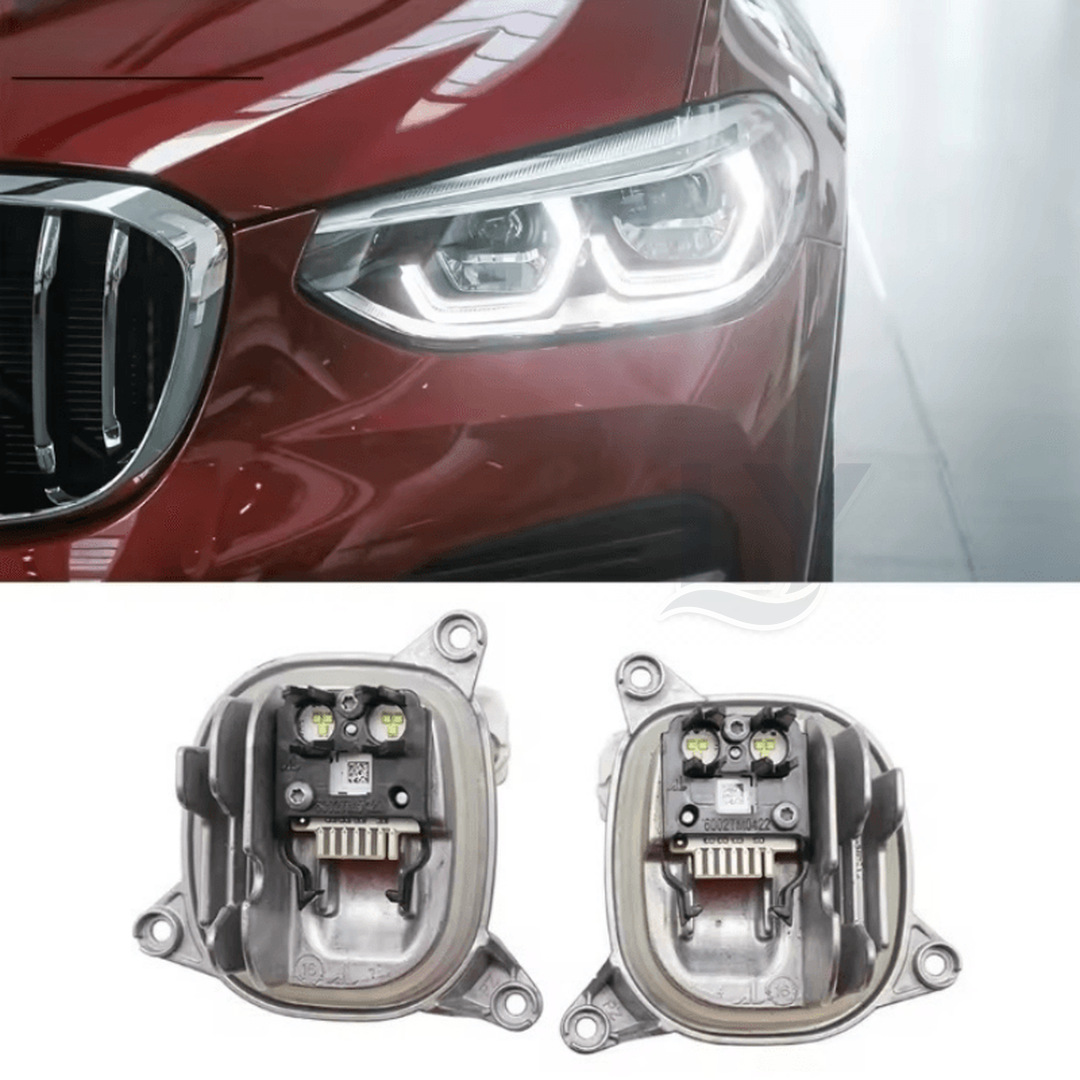

The DRL light guide is a transparent plastic strip that distributes light from the LED board across the headlight for a uniform daytime running light signature. The LED board is the circuit board that powers those LEDs. Together, they form the DRL module for your X3 G01.

Why DRLs Fail on the BMW X3 G01

Several factors contribute to DRL failure on this vehicle:

• Heat cycling: The LEDs and circuit board endure constant on/off cycles, leading to thermal stress and eventual solder joint failure or LED degradation.
• UV yellowing: The polycarbonate light guide can yellow and become brittle from UV exposure, reducing light output and causing a dull or uneven glow.
• Moisture ingress: Condensation inside the headlight housing can corrode the LED board or cloud the light guide, leading to flickering or complete failure.

These issues typically affect one side first, but the other may follow due to similar age and exposure.

Diagnosing the Problem

Before ordering parts, confirm the fault:

1. Visual inspection: Look for a dim, yellow, or non-functioning DRL compared to the opposite side. Check for condensation inside the lens.

2. Error messages: A check control message for the DRL may appear on the iDrive screen.

3. Swap test: If comfortable, swap the LED board from the working side to the faulty side. If the problem moves, the board is faulty; if it stays, the light guide or wiring may be the issue.

4. Scan for codes: A BMW-specific scan tool can reveal fault codes pointing to the DRL circuit.

If the light guide is visibly yellowed or cracked, or the LED board shows burn marks, replacement is needed.

Step-by-Step Replacement

Tools needed: Trim removal tools, Torx screwdrivers, plastic pry tools, clean microfiber cloths, isopropyl alcohol.

1. Disconnect battery: Always disconnect the negative terminal before working on electrical components.

2. Remove headlight: Depending on model year, you may need to remove the front bumper or access the headlight from the wheel well. Consult your service manual for specific steps.

3. Open headlight housing: Carefully separate the lens from the housing using a heat gun or oven method to soften the sealant. Work slowly to avoid damaging the housing.

4. Remove old DRL module: Unscrew or unclip the light guide and LED board. Note the orientation for reassembly.

5. Install new module: Place the new light guide and LED board into the housing, ensuring all clips and screws are secure. Connect the wiring harness.

6. Reseal housing: Apply fresh butyl sealant and press the lens back into place. Ensure a watertight seal.

7. Reinstall headlight: Reverse the removal steps, reconnect the battery, and test the DRL function.

Time estimate: About 1-2 hours for a DIYer with moderate experience.

Fitment Tips

• This guide specifically covers the BMW X3 G01 (2016-2023). The product mentioned is designed for 2018-2020 G08 models; verify your exact model year and chassis code before ordering.
• Check for any differences in headlight design (e.g., adaptive vs. standard) that may affect fitment.
• Pre-shipment QC ensures you receive a functional unit, but always test before final reassembly.
• No coding is required; the module is plug-and-play.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's far more expensive and unnecessary if only the DRL module fails. Here's a comparison:

Replacing just the DRL module saves money, preserves your original housing, and maintains the factory look.

Recommended Fix

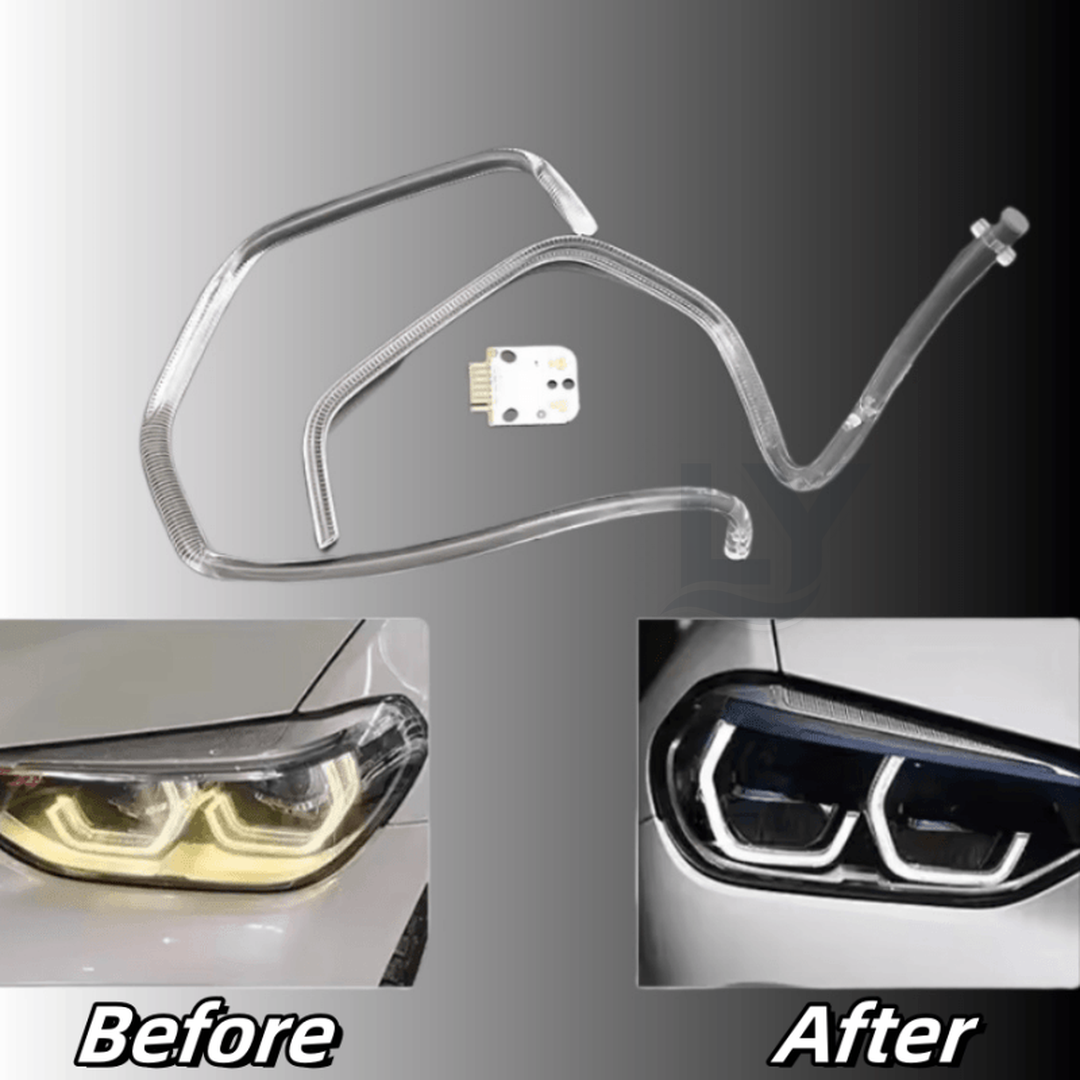

For a reliable, direct-fit solution, we recommend the BMW X3 G08 DRL Light Guide Strip & LED Board (2018-2020). It's designed to restore your DRL function with plug-and-play installation and no coding. Each unit undergoes pre-shipment QC and is backed by a 1-year warranty. Check the product page for current pricing and fitment details.

FAQ

Q: Will this fix work for my 2016 BMW X3 G01?

A: This specific product is for 2018-2020 G08 models. For other years, please verify fitment or contact us for assistance.

Q: Do I need to code the new DRL module after installation?

A: No coding is required; it's plug-and-play.

Q: How long does the installation take?

A: Typically about 1-2 hours for a DIYer with basic tools.

Q: What warranty is included?

A: The product comes with a 1-year warranty.
