BMW F30 DRL Not Working or Flickering? Light Guide & LED Board Fix (2013-2019)

TL;DR

If your BMW F30's daytime running lights (the iconic LED 'eyebrow' strips) are dim, flickering, or completely dead, the issue is almost always the internal LED board or the light guide strip, not the headlight housing or fuses. The fix is to replace both components with a quality aftermarket kit like the BMW 3 Series F30 DRL Light Guide Strip & LED Board (2016-2019), which restores full brightness and reliability.

Does this match your symptom?

BMW F30 daytime running lights not working at all

On an F30 both DRL eyebrows going dark is almost always the LED board inside the headlight failing open. Board and light guide are matched, so the kit renews both in one job and the headlight only gets opened once.

One eyebrow dimmer than the other

That is the classic first stage: individual LEDs on the board have dropped out, so less light reaches the guide. It does not recover on its own, and the other side usually follows.

Flicker, then no light

Flicker followed by failure is the signature of cracked solder joints from heat cycling, not a blown fuse. If 12 V still arrives at the connector but the DRL flickers, the board is the fault.

What Goes Wrong on the F30

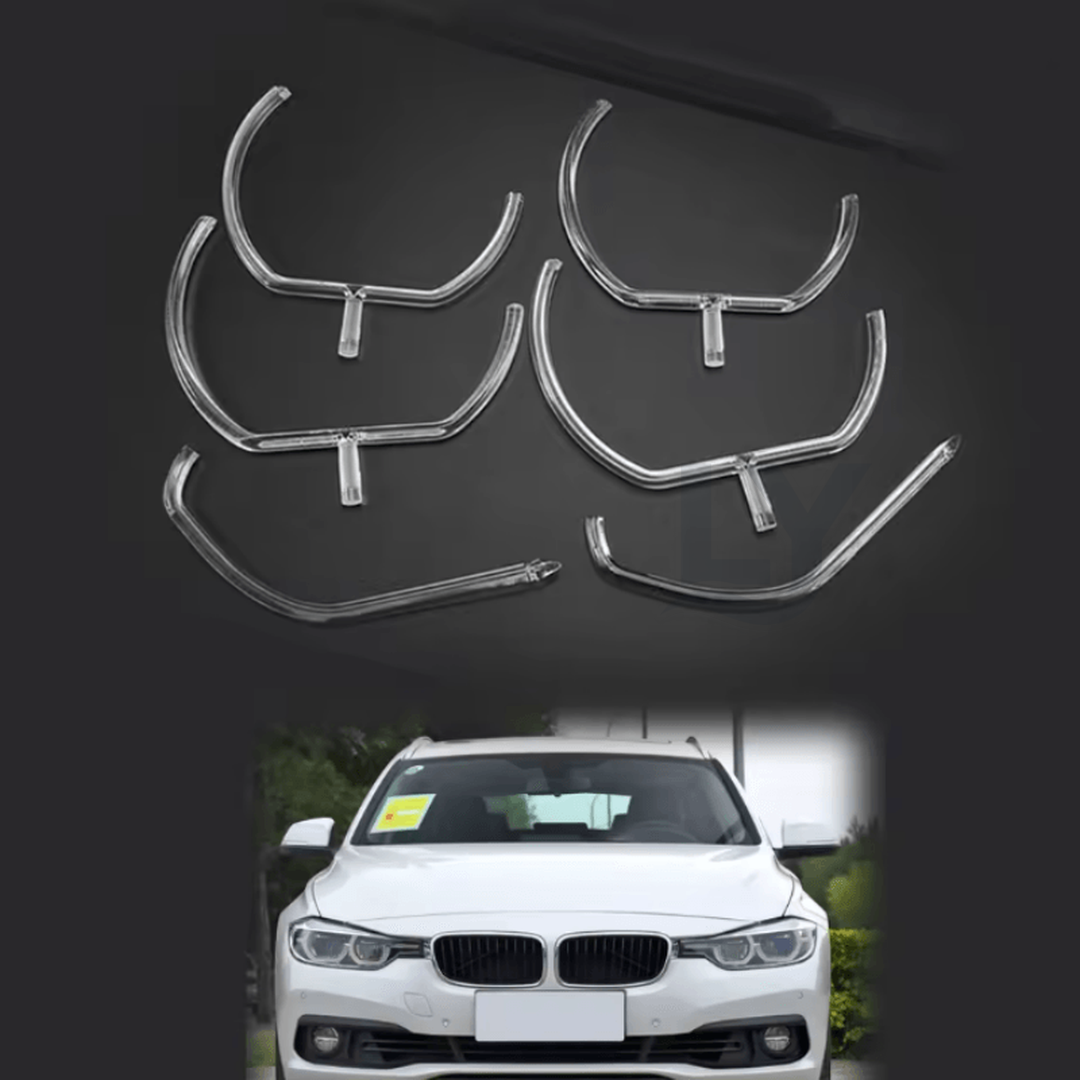

On the 2013–2019 BMW 3 Series (F30), the DRLs are part of the headlight assembly. They consist of a light guide strip (a clear acrylic or polycarbonate rod) and an LED board that shines light into it. Over time, the LEDs on the board degrade, and the light guide can become cloudy or yellowed due to UV exposure. A common issue is that one side fails while the other remains bright, causing an uneven appearance. In some cases, the entire strip goes dark, triggering a warning light on the dashboard. The problem is more prevalent on early models (2013-2016) but can occur on any F30.

Diagnose the Problem

Before buying parts, confirm the issue is not a simple fuse or wiring problem. Check the fuse box for a blown fuse related to the DRLs (consult your owner's manual). If the fuse is fine, use a multimeter to test the connector that plugs into the LED board – you should see ~12V when the DRLs are on. If power is present, the fault is internal. Also, compare the brightness of both sides; if one is noticeably dimmer, the LED board is the culprit. In rare cases, the light guide itself may be cracked or broken, but this is less common.

Step-by-Step Replacement

Replacing the DRL light guide and LED board requires removing the headlight assembly. Here’s how: 1) Disconnect the battery negative terminal. 2) Remove the front bumper or at least the lower trim to access the headlight bolts – on the F30, you often need to remove the bumper to slide the headlight forward. 3) Unbolt the headlight (typically 2-3 bolts) and carefully pull it out. 4) Once on a bench, remove the headlight back cover (usually clips or screws). 5) Locate the DRL module – it's a small circuit board attached to the light guide. Unplug the connector and remove the screws holding the board. 6) Gently pull the old light guide out of its channel. 7) Install the new light guide, ensuring it sits flush in the groove. 8) Mount the new LED board, secure it, and reconnect. 9) Reassemble the headlight, reinstall it, and reconnect the battery. Test the DRLs before reassembling the bumper. The entire process takes about 1.5 to 2 hours for a DIYer.

Fitment Tips and Quality Notes

When buying a replacement, ensure it matches your exact model year. The 2016-2019 F30 has a slightly different light guide design than earlier models, so verify compatibility. The part we recommend is a direct OEM replacement, meaning it bolts on without modification. Thermal management is what separates a board that lasts from one that fails early: this board spreads heat across a thicker copper layer, and the light guide is moulded to the original profile for even light distribution. Also, check if your headlight has a sealing gasket – reuse it carefully to prevent moisture ingress.

Why Replace with This Kit?

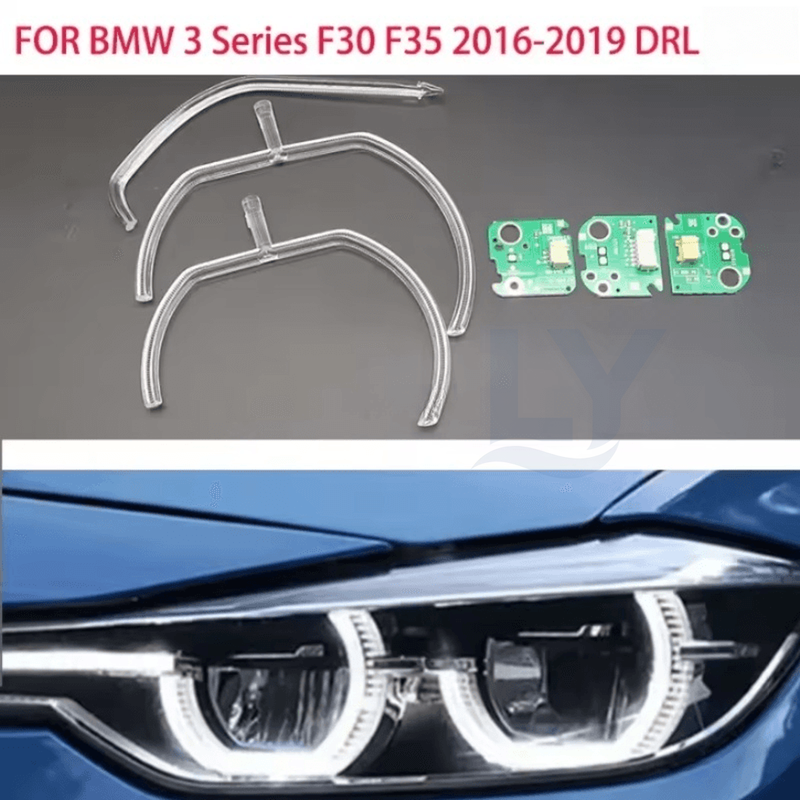

If you're tired of mismatched DRLs or a warning light on your dash, this is the solution. The BMW 3 Series F30 DRL Light Guide Strip & LED Board (2016-2019) is engineered to match OEM specs while improving long-term reliability. It comes with both the light guide and the LED board, saving you from buying two separate parts. Every part is inspected before shipment and carries a 1-year warranty. Plus, installing it yourself saves you $200-$400 in labor costs at a shop. Don't drive with one eyebrow darker than the other – restore your F30’s sharp look.

FAQ Q: Both F30 3 Series DRLs went dark at the same time - do I need two boards? A: Boards rarely fail simultaneously, so when both sides die together the fault is usually upstream: the DRL fuse, the control module, or the wiring between them. Check the fuse first (the owner's manual lists the slot), then the module. Only replace the boards once the shared parts test fine. Q: There is moisture inside my F30 3 Series headlight - will a new board survive it? A: Not unless you deal with the moisture first. Water ingress is what usually kills the board, so dry the housing completely, replace the butyl seal and check the vent caps, then fit the new board. A cracked lens means the assembly itself is due.

Standards reference: for the BMW F30, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. A replacement board or guide puts the lamp back inside that specification.

Q: Can I replace only the LED board without the light guide? A: Yes, if the light guide is clear and not damaged, you can reuse it. However, most kits include both because they often fail together, and replacing both ensures uniform brightness.

Q: How long does the replacement last? A: With proper installation, the new LED board should last 5-7 years or more, depending on usage. The improved thermal design reduces heat stress on the LEDs.

Q: Is this compatible with xenon or adaptive headlights? A: Yes, as long as your F30 is a 2016-2019 model with the standard LED DRLs. The kit is not for halogen headlights or pre-2016 models.

Q: Do I need to reset any codes after installation? A: Usually not, but if a warning light remains, you may need to clear the fault memory with a BMW diagnostic tool. Often disconnecting the battery for a few minutes will reset the system.
