Porsche Macan DRL Not Working? How to Fix Faded or Dead Daytime Running Lights (2015-2017)

TL;DR

On 2015-2017 Porsche Macan models, the daytime running lights commonly fail when the LED board inside the headlight degrades, causing dim, flickering, or dead DRLs. Replacing the DRL LED board restores proper function without replacing the entire headlight assembly.

What Fails on the Macan's DRL System

The DRL system in the 2015-2017 Macan uses a light guide (a clear plastic strip that distributes light) and an LED board (the circuit board with LEDs that illuminates the guide). Over time, heat cycling and moisture can damage the LED board, leading to dim, flickering, or completely non-functional DRLs. The light guide itself may also yellow from UV exposure, but often the LED board is the primary culprit.

Diagnosing the Problem

Before replacing parts, confirm the issue:

• Check if one or both DRLs are affected. If both, the issue is likely the LED board or a shared power source.
• Inspect the light guide for visible yellowing or cracks.
• Look for moisture inside the headlight housing, which can corrode the board.
• Test with a multimeter if you're comfortable; otherwise, a simple visual check of the LED board for burn marks or corrosion is a good indicator.

If the light guide is clear but the DRL is dim or dead, the LED board is the likely failure point.

Step-by-Step Replacement

Replacing the DRL LED board is a straightforward DIY job that takes about 1-2 hours per side. On the Porsche Macan the connector is factory-matched and no wiring is touched. If a warning appears it comes from the car's lamp monitoring, not the part.

1. Disconnect the battery to avoid electrical issues.

2. Remove the headlight assembly: Typically, you'll need to remove the front bumper or at least the wheel arch liner to access the mounting bolts. Consult your service manual for exact steps.

3. Open the headlight housing: Remove the rear cover to access the internal components.

4. Locate the DRL LED board: It's usually attached to the back of the light guide or mounted nearby.

5. Disconnect the wiring harness and remove the old board.

6. Install the new LED board: Connect the harness and secure the board in place.

7. Reassemble the headlight, reinstall it, and reconnect the battery.

8. Test the DRLs before fully reassembling the bumper.

Fitment Tips

• Ensure the new LED board is designed specifically for the 2015-2017 Macan; other models may look similar but won't fit.
• Handle the light guide carefully to avoid scratches or cracks.
• Check the seals on the headlight housing and replace if worn to prevent future moisture ingress.
• Apply dielectric grease to electrical connections for added protection.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's far more expensive and unnecessary if only the DRL fails. A new LED board costs a fraction of the cost of a new headlight assembly and preserves your original housing. Plus, installation is simpler and you avoid coding or alignment issues.

Recommended Solution

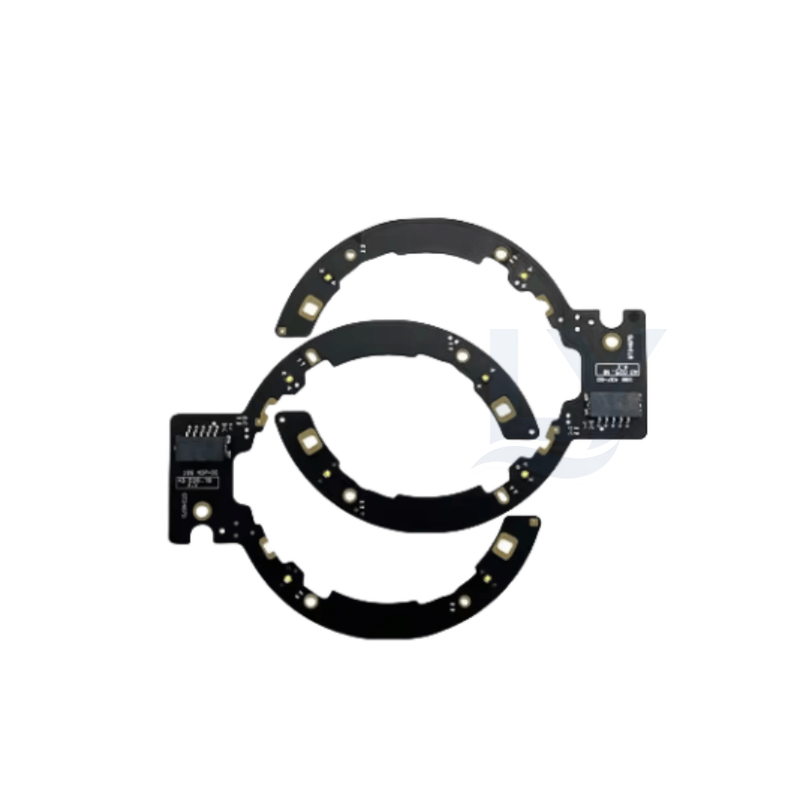

For a reliable fix, we recommend the Porsche Macan DRL LED Board (2015-2017). This direct-fit board is pre-shipment QC checked and comes with a 1-year warranty. It's plug-and-play, restoring your DRLs to full function without the expense of a new headlight.

FAQ

Q: Will I need to code the new LED board?

A: Fit and go on most Porsche Macan cars. Where a warning does appear it is the lamp self-check, cleared by coding rather than by swapping parts.

Q: How much time should I set aside for this?

A: Typically about 1-2 hours per side, depending on your mechanical skill.

Q: Can the board be changed in situ?

A: In most cases, you'll need to remove the headlight assembly to access the board, but it's a straightforward process.

Q: What if my light guide is also yellowed?

A: If the light guide is yellowed, it may need replacement too; however, often the LED board is the main issue. Inspect both before ordering.

Standards reference: for the Porsche Macan, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fresh board or guide, same regulated function the car left the factory with.
