BMW G70 DRL Not Working? How to Fix Faded or Dead Daytime Running Lights (2022-2024)

TL;DR

On the 2022-2024 BMW G70 7 Series, the daytime running lights often fail because the LED board and light guide strip degrade from heat and UV exposure, causing dim, yellow, or flickering DRLs. Replacing the DRL LED board restores crisp, uniform lighting without replacing the entire headlight assembly.

What Goes Wrong on the G70

The G70's DRL system uses a light guide—a clear plastic strip that distributes light from an LED board. Over time, heat cycling from the LEDs and engine bay causes micro-cracks in the guide, while UV exposure yellows the plastic. Moisture can also enter through aged seals, corroding the LED board. The result: uneven brightness, a yellowish tint, or complete failure of one or both DRLs. Because the DRL is integrated into the headlight housing, many owners assume the whole unit must be replaced—but the LED board and guide are serviceable separately.

How to Diagnose

First, check if the DRL failure is consistent. Turn on the DRLs and observe: if one side is dim or yellow while the other is bright white, the LED board or guide is the likely culprit. If both sides fail simultaneously, check fuses and wiring first. A simple test: swap the left and right LED boards (if accessible) to see if the problem follows the board. If it does, the board is faulty. Also inspect the light guide for visible yellowing or cracks. Moisture inside the housing—fogging or water droplets—indicates a seal issue that should be addressed to prevent recurrence.

Step-by-Step Replacement

Replacing the DRL LED board on the G70 is a plug-and-play job that takes about 1-2 hours with basic hand tools. The BMW G70 connector is factory-matched, so no wiring is touched. If a warning shows up afterwards it is the cold/warm lamp check, cleared by a short coding session rather than a part swap. Start by disconnecting the negative battery terminal. Remove the front bumper cover or wheel arch liner to access the headlight housing (consult your service manual for exact fasteners). Unbolt the headlight and gently pull it forward. On the back of the housing, locate the DRL module cover; remove it to expose the LED board. Unplug the connector and lift out the old board and light guide. Install the new board, ensuring the guide is seated properly and the connector clicks. Reassemble in reverse order, then test the DRLs before fully tightening everything.

Fitment Tips

Ensure the replacement LED board is specifically designed for the 2022-2024 G70 7 Series—other models may look similar but have different connectors or mounting points. Handle the light guide with clean gloves to avoid fingerprints that can cause hot spots. Check the housing seals and replace if brittle; a thin bead of silicone grease on the gasket can improve sealing. After installation, verify that the DRL beam pattern is even and matches the opposite side. If moisture was present, dry the housing thoroughly before reassembly.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's far more expensive and unnecessary if only the DRL fails. A new OEM assembly can cost well over a thousand dollars, while the DRL LED board is a fraction of the cost of a new headlight assembly. Install time for the board is about 1-2 hours versus several hours for a full assembly, and you keep your original housing, preserving the factory fit and finish.

The Right Part for Your G70

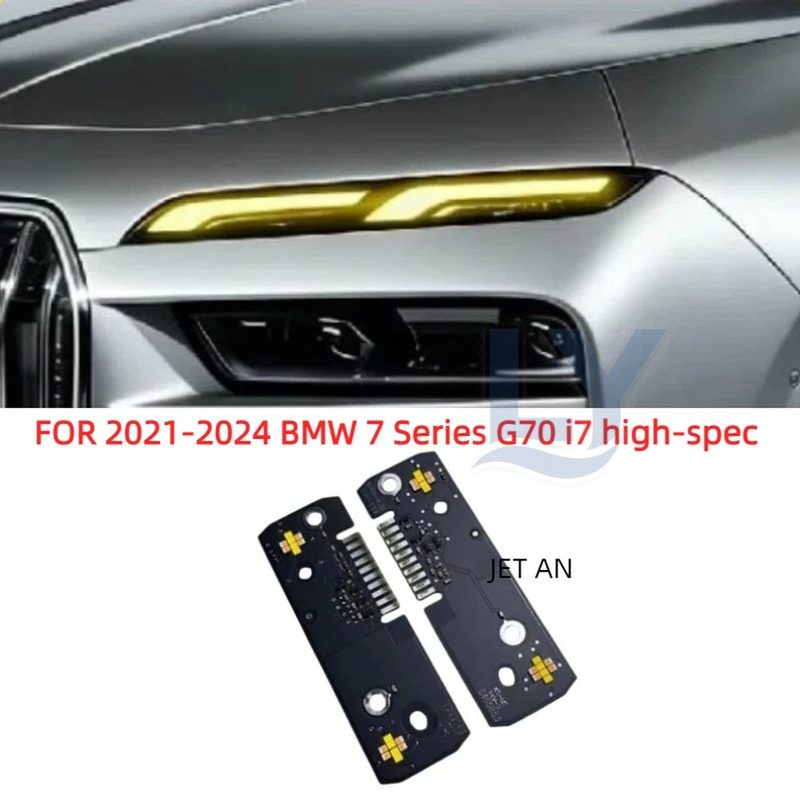

For a direct fit and reliable performance, choose the BMW 7 Series G70 DRL LED Board (2022-2024). Usually not - on the BMW G70 the board is a direct electrical swap. Some cars still log a DRL check warning or flicker until that check is coded off (Bimmercode or equivalent), so we do not promise an error-free result on every BMW G70. Restore your 7 Series' distinctive DRL signature without the cost of a full headlight replacement.

FAQ

Fit the board and most BMW G70 cars are done. A minority report a DRL fault or flicker until the diagnostic check is disabled by coding; budget five minutes for that if your car is fussy.

A: Treat coding as possible rather than required on the BMW G70: most cars settle immediately, a few need the lamp check coded off before the warning clears.

Q: Is this an afternoon job or a weekend one?

A: Typically about 1-2 hours with basic tools.

Q: Can I replace just the DRL if the rest of the headlight works?

A: Yes, the DRL LED board and light guide are serviceable separately from the main headlight.

Q: What causes the DRL to turn yellow?

A: UV exposure and heat cycling degrade the light guide and LED board, causing yellowing and dimming.

Standards reference: for the BMW G70, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fresh board or guide, same regulated function the car left the factory with.
