How to Fix Failing DRLs on the 2021-2023 VW Golf 8: Replacing the Light Guide Strip and LED Board

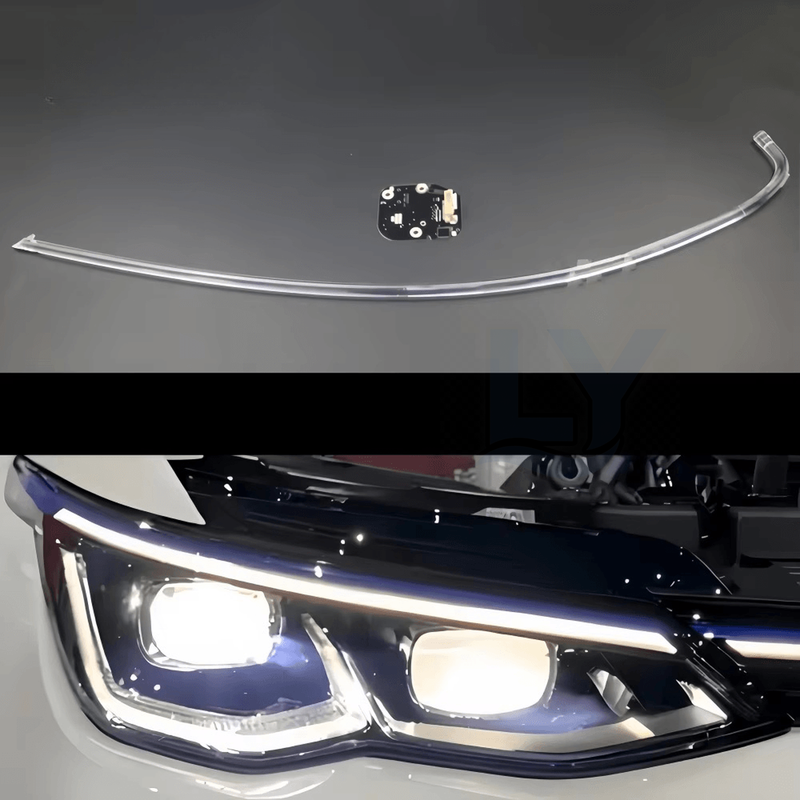

TL;DR On the Golf 8, the DRL light guide strip and LED board often fail due to heat or electrical stress, causing a partial or complete loss of the daytime running light. The fix is to replace the entire assembly with a new Volkswagen Golf 8 DRL Light Guide Strip & LED Board (2021-2023). This is a direct swap that restores full brightness.

What Goes Wrong with the Golf 8 DRLs The Golf 8's signature DRL is a thin light guide strip powered by an LED board. Over time, the LEDs can burn out, or the light guide can develop hot spots or dim areas. You might notice one side is dimmer than the other, or a section of the strip is completely dark. This is a known issue, with some owners reporting failures as early as 30,000 miles. The root cause is often inadequate heat dissipation and voltage spikes from the vehicle's electrical system. For clarity, the DRL light guide is a clear acrylic strip that distributes light from the LED board along the headlight's edge, giving the Golf 8 its distinctive daytime running light signature.

Diagnosing the Problem Before buying a new part, confirm the issue is in the light guide or LED board, not the headlight control module or wiring. Use a diagnostic scan tool to check for fault codes related to the DRL. If no codes appear, visually inspect the strip: turn on the DRLs and look for uneven brightness or dead segments. If you see a clear break or dark area, the light guide is likely damaged. Also, test the LED board by swapping it from the other side (if identical) – if the fault follows the board, it's the culprit.

Step-by-Step Replacement Replacing the DRL light guide and LED board on the Golf 8 takes about 60-90 minutes per side. Here's how: 1. Disconnect the battery and remove the headlight assembly (you may need to remove the front bumper cover for access). 2. Place the headlight on a clean, soft surface. Remove the back cover and unplug the electrical connectors. 3. Carefully separate the headlight lens from the housing. This often requires heating the adhesive in an oven at 200°F (95°C) for 10-15 minutes to soften it. 4. Once open, locate the DRL light guide and LED board. Unscrew the board and gently pull the light guide out of its channel. 5. Install the new light guide and LED board, ensuring they sit flush. Re-seal the lens with a quality butyl sealant or new adhesive. 6. Reinstall the headlight, reconnect the battery, and test the DRLs.

Fitment Tips and Common Pitfalls When ordering, always verify the part number matches your Golf 8's trim and production date (2021-2023). The left and right sides are often different, so specify which side you need. During installation, handle the light guide carefully – it's brittle and can crack if bent too sharply. Also, clean the inside of the lens before sealing to avoid dust spots. A common mistake is not applying enough sealant, leading to moisture ingress later. If you're not confident in your ability to reseal the headlight, consider having a professional do the lens separation step.

Why Replace with the OEM-Style Part? Instead of buying a whole new headlight assembly (which can cost over $800), replacing just the DRL light guide and LED board is a cost-effective solution. The upgraded LED board in this part provides consistent brightness and meets OEM specifications. On the Golf 8 the failure is almost always the LED board rather than the wiring, so replacing the board and guide restores the factory look without the dealer price tag. Plus, you'll save hours of labor by doing it yourself.

FAQ Q: Can I drive with a broken DRL? A: Yes, but it's unsafe and may fail inspection in some states. Also, a dim DRL reduces visibility, especially in low-light conditions. Q: How long does the replacement part last? A: The new LED board is designed to last the lifetime of the vehicle, typically over 100,000 hours, but expect 5-10 years of normal use. Q: Will this fix the flickering DRL issue? A: Yes, if the flickering is caused by a failing LED board or light guide, this replacement will resolve it. Q: Do I need to replace both sides at once? A: Not necessarily, but if one side has failed, the other may be close behind due to similar conditions. Many owners choose to replace both for consistency.

Standards & further reading

Reference material for the standards and technology that govern vehicle lighting equipment:

• FMVSS No. 108 - Lamps, reflective devices, and associated equipment - the US federal standard governing vehicle lighting equipment - ams OSRAM - automotive lighting - light-source and LED technology reference - HELLA - automotive lighting and electronics - vehicle lighting systems reference

Standards reference: for the Volkswagen Golf 8, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Replacing the failed board or guide restores the function those rules describe.
