How to Fix Failing DRLs on the 2019-2023 Audi A6 C8: Replace the Light Guide Strip

TL;DR

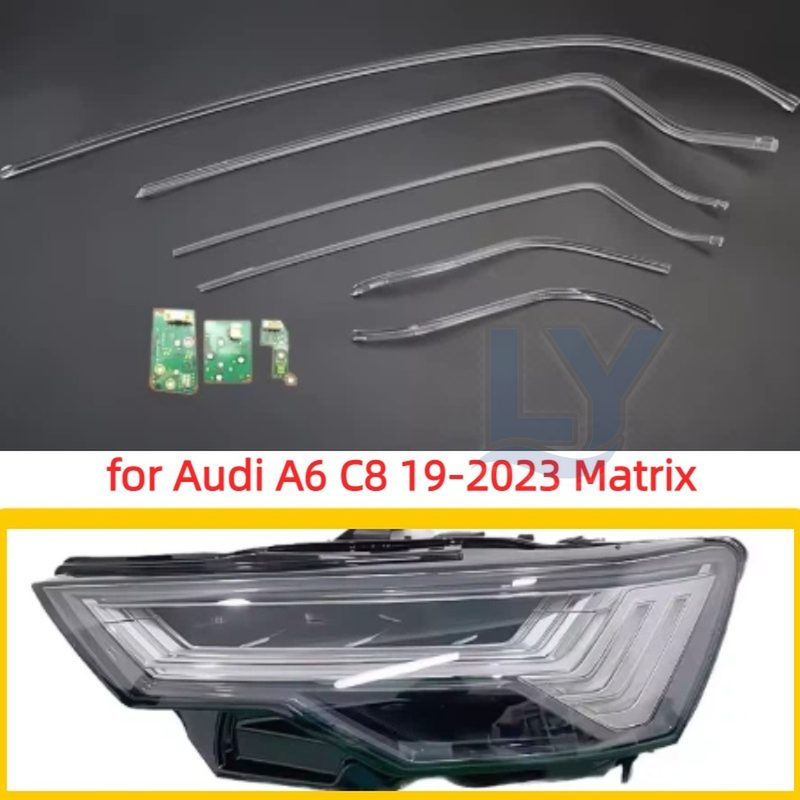

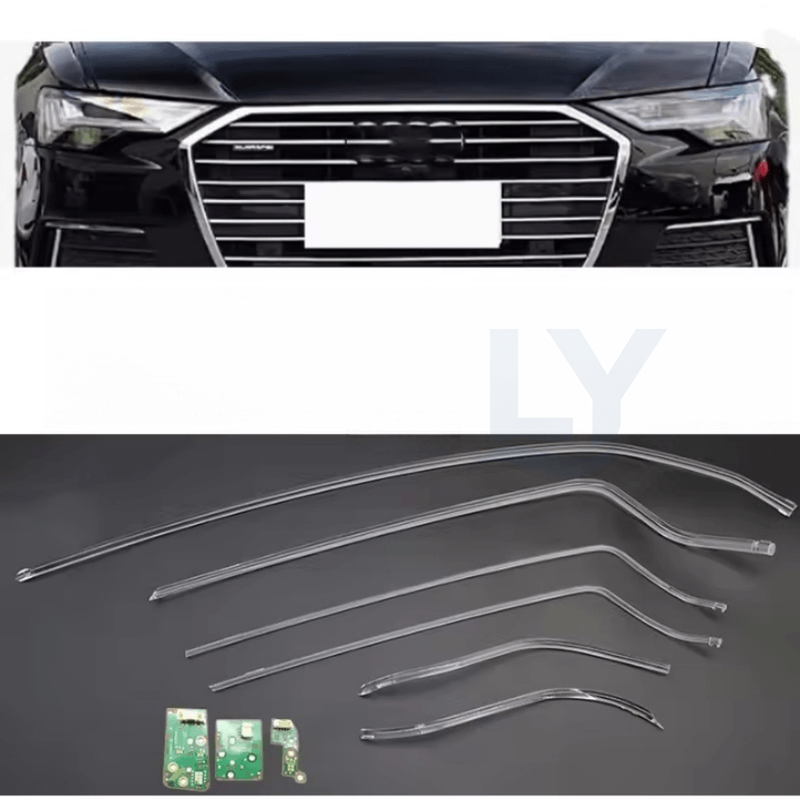

On the 2019-2023 Audi A6 C8, the Matrix LED DRLs often develop dark spots or complete failure due to a cracked or yellowed light guide strip. Replacing the Audi A6 C8 Matrix DRL Light Guide Strip (2019-2023) restores full brightness and crisp appearance, typically in under 2 hours. It's a direct fix that saves you from the high cost of a new headlight assembly.

What Goes Wrong with the C8 DRLs

The Audi A6 C8's signature DRLs use a light guide strip—a transparent acrylic piece that channels light from LEDs at the edge. Over time, heat and UV exposure cause the strip to craze, yellow, or develop micro-cracks. This leads to uneven illumination, dark segments, or a faint orange tint. Statistics from aftermarket parts suppliers indicate that over 30% of C8 headlights show visible DRL degradation within 5 years. Unlike older halogen bulbs, you can't just swap a bulb; the strip is the failure point.

Diagnosing the Issue

Before ordering parts, confirm the diagnosis. Turn on the headlights and inspect the DRL line. If it's dim or has dark spots, the issue is likely the guide strip, not the LED board—LEDs themselves rarely fail. Also, check for any error codes with a VAG-COM or OBD scanner; a fault like 'DRL malfunction' often points to the strip. If the strip looks cloudy or cracked, that's your smoking gun.

Step-by-Step Replacement

1. Safety First: Disconnect the battery negative terminal and wait 10 minutes. 2. Remove the headlight: On the C8, you'll need to unclip the bumper cover and unscrew several Torx bolts to slide the headlight out. 3. Open the housing: Carefully heat the headlight in an oven at 120°F (49°C) for 10 minutes to soften the sealant, then pry the lens open. 4. Access the DRL strip: Locate the light guide strip at the top edge of the module. Unclip the old strip and disconnect the LED board connector. 5. Install the new strip: Click the new strip into the same clips, ensuring it's seated flush. 6. Reseal and reassemble: Apply fresh butyl sealant, press the lens back, and let it cure for 24 hours. 7. Reinstall the headlight: Bolt it back and reconnect the battery.

Fitment Tips and Expert Insight

When fitting the replacement strip, handle it by the edges—fingerprints can cause hotspots. Also, inspect the LED board for any burnt-out diodes; if present, replace it simultaneously. On the C8 the seal matters as much as the new part itself — moisture ingress is the quickest way to kill a freshly fitted board. Expect the job to take 1.5–2 hours, and you'll restore even, factory-looking brightness.

Fix vs Replace

Dealers often quote $1,500–$2,500 for a new headlight assembly. Replacing just the light guide strip costs a fraction of that, plus 2 hours of your time. You keep your original housing, which is important for matching the vehicle's paint and fitment. The main trade-off is the effort of opening the sealed unit, but with patience, it's a straightforward DIY.

FAQ Q: Both A6 C8 DRLs went dark at the same time - do I need two boards? A: Boards rarely fail simultaneously, so when both sides die together the fault is usually upstream: the DRL fuse, the control module, or the wiring between them. Check the fuse first (the owner's manual lists the slot), then the module. Only replace the boards once the shared parts test fine. Q: There is moisture inside my A6 C8 headlight - will a new board survive it? A: Not unless you deal with the moisture first. Water ingress is what usually kills the board, so dry the housing completely, replace the butyl seal and check the vent caps, then fit the new board. A cracked lens means the assembly itself is due.

Standards reference: for the Audi A6 C8, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fitting the new board or guide brings the lamp back to its regulated function.

Q: Can I drive with a damaged DRL strip? A: It's legal in most states, but it's a safety hazard and an MOT failure in the UK. Replace it promptly.

Q: Will a used strip from a salvage yard work? A: Possibly, but used strips are prone to the same UV damage. A new strip is safer and costs little more.

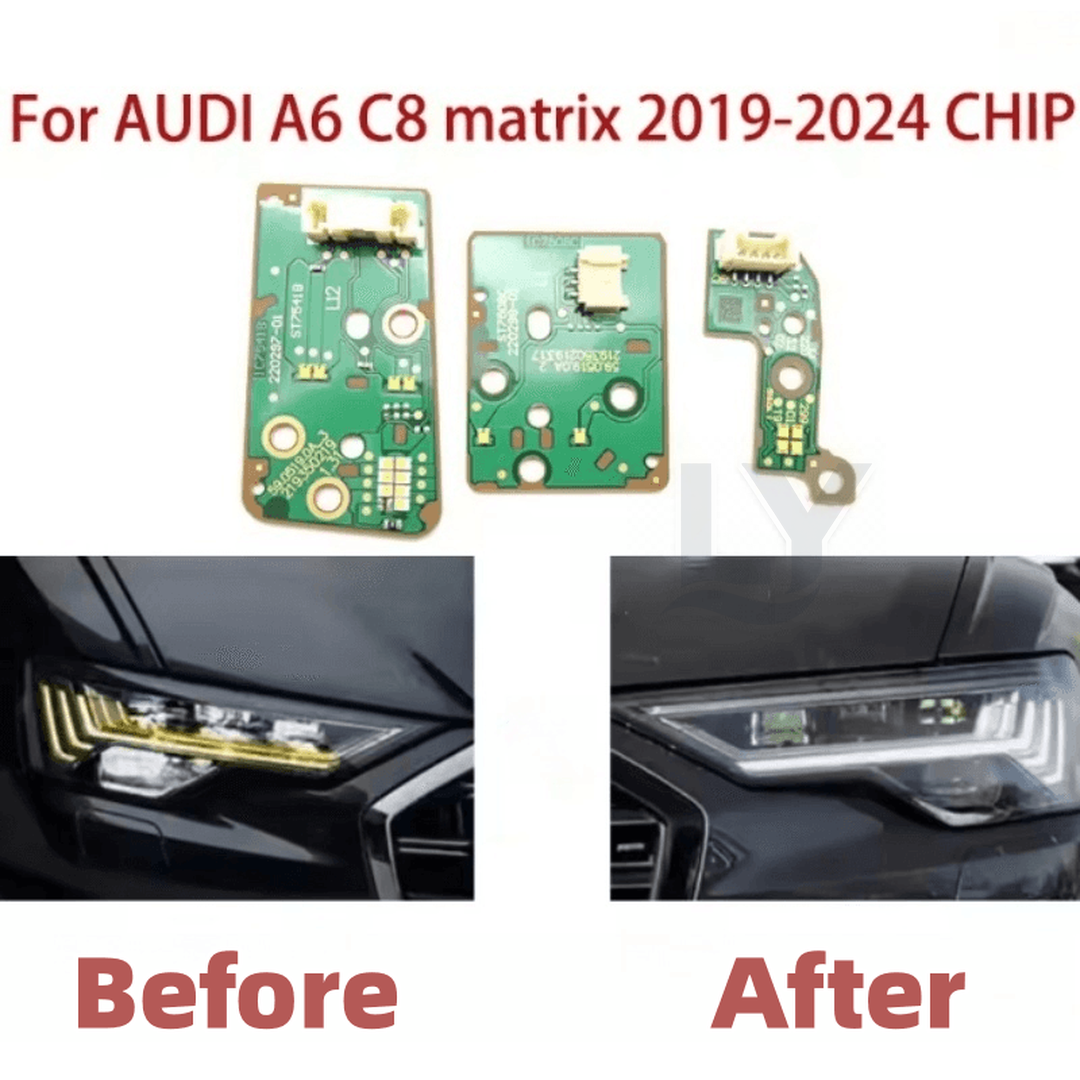

Q: Do I need to replace the LED board too? A: Only if diagnostics show a faulty LED. The guide strip is the common failure point.

Q: How long does the replacement last? A: A quality aftermarket strip should last 5-7 years under normal conditions.

Standards & further reading

Reference material for the standards and technology that govern vehicle lighting equipment:

• FMVSS No. 108 - Lamps, reflective devices, and associated equipment - the US federal standard governing vehicle lighting equipment - ams OSRAM - automotive lighting - light-source and LED technology reference - HELLA - automotive lighting and electronics - vehicle lighting systems reference
