How to Fix Dim or Failing DRLs on Your 2018–2023 Lexus ES300 Without Replacing the Whole Headlight

TL;DR

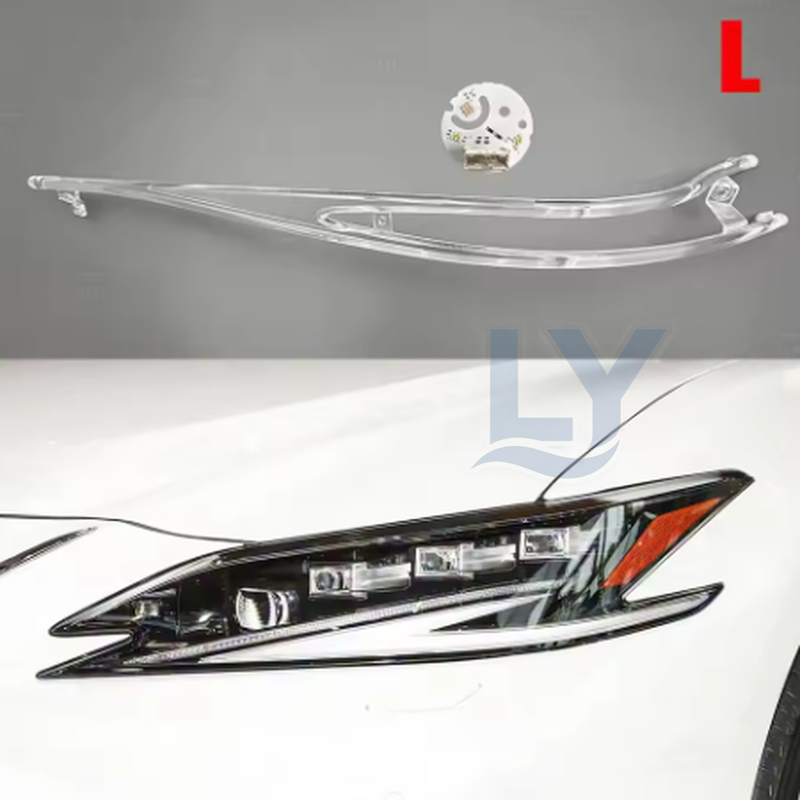

On 2018–2023 Lexus ES300 models, the DRLs often fail due to a burnt-out LED board or a cracked/clouded light guide strip, causing one side to appear dim or completely dark. Instead of replacing the entire headlight assembly (which can cost $1,000+), you can swap in a new Lexus ES 200/ES 260/ES 300 DRL Light Guide Strip & LED Board (2022-2023) to restore bright, even light output in about 1–2 hours.

What Goes Wrong With the DRLs on This Vehicle

The DRLs on the Lexus ES300 (2018–2023) are integrated into the headlight housing as a sleek light guide strip powered by an LED board. Over time, the LEDs can degrade due to heat, or the light guide can develop micro-cracks from thermal cycling or minor impacts, causing light to scatter unevenly. Owners often report a yellowish tint or one side dimmer than the other—a clear sign the LED board is failing. In some cases, moisture can seep into the housing and corrode the board, leading to complete failure.

Diagnosing the Problem

Before ordering parts, confirm the issue is the DRL light guide/LED board and not the headlight control module or a fuse. Use an OBD-II scanner to check for fault codes like B2620 (DRL circuit malfunction). If no codes appear, visually inspect the light guide: turn on the DRLs and look for dark spots or uneven brightness. If the strip is cloudy or has visible cracks, it's likely the guide. If the strip looks fine but the light is weak or flickers, the LED board is the culprit. A quick test: swap the headlight assemblies side to side (if you have the tools) to see if the problem moves—but this is time-consuming, so many techs just recommend replacing the guide and board together.

Step-by-Step Replacement Guide

1. Safety first: Disconnect the 12V battery negative terminal and wait 5 minutes. 2. Remove the front bumper cover (or at least the upper clips and screws near the headlight) to access the headlight assembly—this is necessary because the DRL is sealed inside. 3. Unbolt the headlight assembly (typically 3 bolts and a wiring connector). Carefully pull it forward. 4. Place the headlight on a clean, padded workbench and remove the back covers and any connectors. 5. Locate the DRL light guide and LED board—they are usually behind a clear lens cover. You may need to separate the housing using an oven or heat gun if the sealant is stubborn (do this at your own risk; many aftermarket guides recommend baking at 200°F for 10 minutes). 6. Remove the old light guide and LED board—they may be secured with screws or clips. 7. Install the new part, ensuring the light guide snaps into place and the LED board connects firmly. 8. Reseal the housing with butyl rubber sealant and reassemble. 9. Reinstall the headlight assembly and reconnect the battery. Test the DRLs—now they should be bright and even.

Fitment Tips and Common Pitfalls

The part is designed for 2022–2023 models, but it fits all 2018–2023 ES300s because the headlight housing shape and DRL design are identical across those years. However, be careful: the light guide is fragile, so handle it by the edges. When sealing the housing, use a high-quality butyl sealant and let it cure fully (at least 12 hours) to prevent moisture intrusion. If you're not comfortable baking your headlight, consider hiring a professional—but buying the part saves you the $300–$500 markup shops often add. Replacing just the DRL strip targets the same failure point while keeping your original housing — saving money and preserving the factory alignment.

Fix vs Replace

If your headlight assembly is otherwise in good shape (no cracks, no moisture), replacing the DRL light guide and LED board is the cost-effective choice. A full headlight replacement can run $800–$1,500 for parts and labor, while our DRL light guide + LED board kit costs a fraction of that and takes about 1.5 hours. You also get to keep your original housing, which means no alignment issues and a perfect factory appearance.

FAQ

Standards reference: for the Lexus Es300, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The replacement parts restore the output those rules were written around.

Q: Can I replace just the DRL bulb on my ES300? A: No—the DRL uses an integrated LED board, not a replaceable bulb. If the board fails, you must replace the entire DRL light guide assembly.

Q: Will this part fit my 2020 ES300? A: Yes, the DRL design is the same across 2018–2023 model years, so this 2022–2023 part is fully compatible.

Q: How long does the new DRL last? A: Typically, OEM-like LED boards last 50,000–100,000 hours, so expect many years of trouble-free operation.

Q: Do I need to remove the bumper to replace the DRL? A: Yes, accessing the headlight assembly requires removing the front bumper cover or at least loosening it; it's a standard procedure and takes about 20 minutes extra.
