How Much Does It Cost to Fix Porsche Cayenne DRLs? (2018-2023)

TL;DR

On 2018-2023 Porsche Cayenne models, the daytime running light (DRL) often fails when the LED board or light guide degrades from heat and moisture, causing dim, flickering, or dead DRLs. Fit and go on most Porsche Cayenne cars. Where a warning does appear it is the lamp self-check, cleared by coding rather than by swapping parts.

What Is a DRL Light Guide / LED Board?

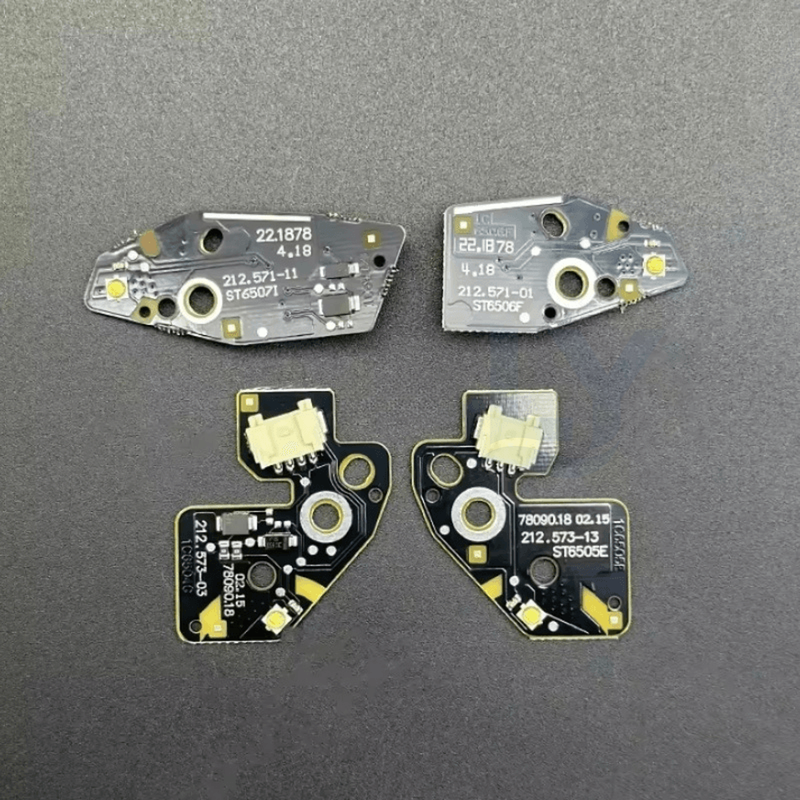

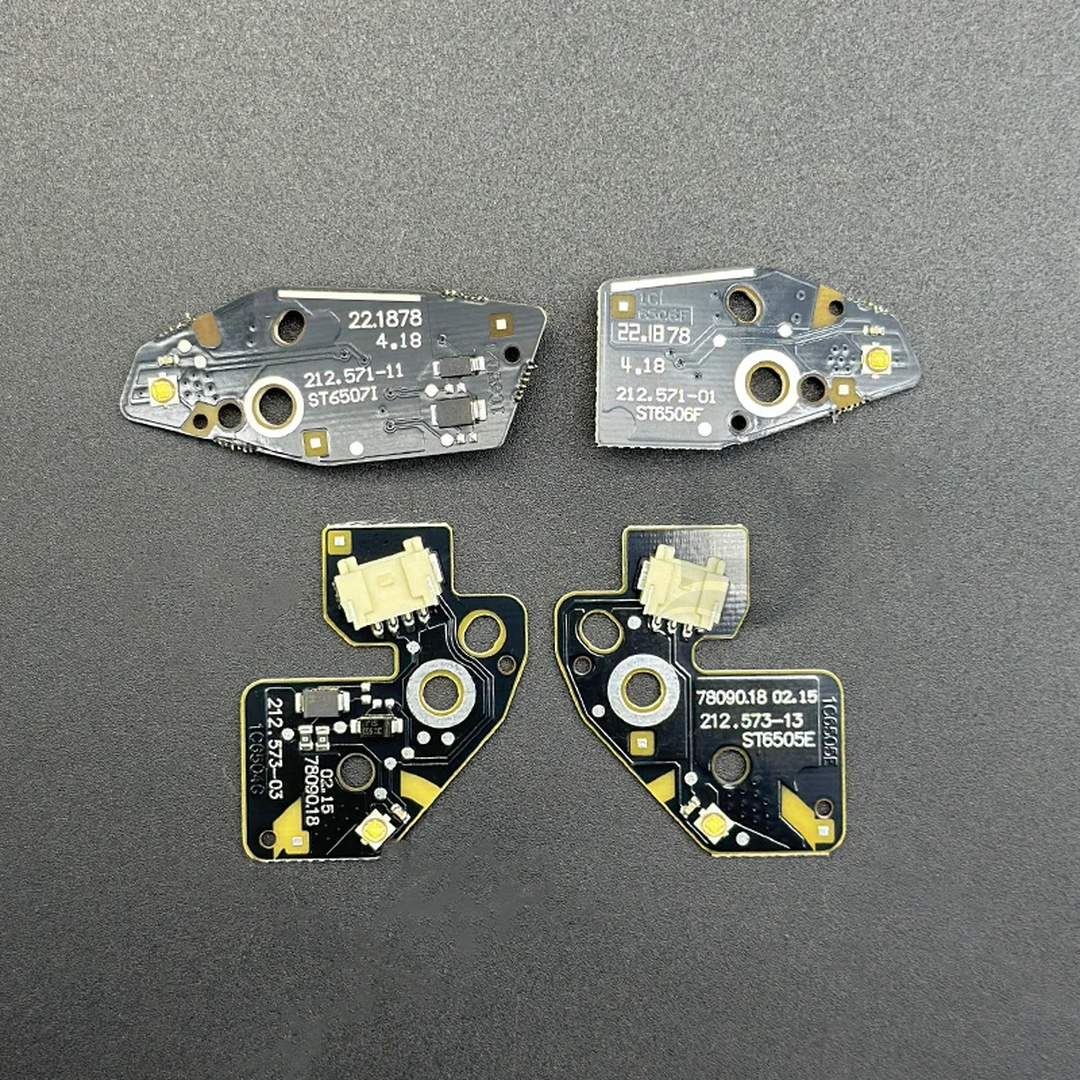

In the 2018-2023 Porsche Cayenne, the DRL light guide is a clear plastic strip that distributes light from LEDs, and the LED board is the circuit board that powers those LEDs. Together, they create the signature four-point daytime running light look. When either fails, the DRL dims or goes out entirely.

What Goes Wrong on the Cayenne

The most common issue is heat cycling: repeated expansion and contraction of the LED board and its solder joints leads to micro-cracks and intermittent operation. Over time, UV exposure can yellow the light guide, reducing light output. Moisture ingress through compromised seals can also corrode the board, causing flickering or complete failure. These problems typically affect one side first, but both sides can fail eventually due to identical operating conditions.

How to Diagnose DRL Problems

Start by observing the DRL behavior: is it completely out, dim, or flickering? Swap the left and right LED boards if accessible—if the problem moves with the board, the board is faulty. If it stays on the same side, the issue may be wiring or the headlight housing. Check for moisture inside the headlight; condensation indicates a seal failure that may have damaged the board. A multimeter can test for power at the board connector, but many DIYers simply replace the board as it's inexpensive and plug-and-play.

Step-by-Step Replacement

1. Disconnect the negative battery terminal for safety. 2. Remove the front bumper cover or access panel to reach the headlight (consult your model's service manual for exact steps). 3. Unbolt the headlight assembly and pull it forward to access the rear. 4. Remove the rear cover of the headlight housing. 5. Unplug the DRL LED board connector and unscrew the board. 6. Install the new LED board, ensuring the connector clicks into place. 7. Reassemble in reverse order. The Porsche Cayenne needs nothing beyond the swap in most cases; the exception is cars that monitor their lamps and log a fault until the check is disabled. Approximate install time: 1-2 hours.

Fitment Tips

This DRL LED board is designed specifically for 2019-2023 Porsche Cayenne models. Ensure your vehicle matches this range; 2018 models may have a different connector. Check the board for any pre-shipment QC stickers or marks—these are normal. Handle the board by the edges to avoid damaging components. Apply dielectric grease to the connector to prevent future corrosion. If the light guide is also yellowed, consider replacing it simultaneously for optimal light output.

What Replacement Costs

A dealer or OEM headlight assembly for the Cayenne typically costs well over a thousand dollars, often ranging from $1,500 to $3,000 per side, depending on options. In contrast, a replacement DRL LED board or light guide strip costs a fraction of that—often under $200. For current pricing on our Porsche Cayenne DRL LED Board (2019-2023), please visit the product page.

Fix vs Replace

Replacing just the LED board saves significant money and preserves your original housing, which is already color-matched and sealed.

FAQ

Q: Will I need to code the new DRL board after installation?

A: Most Porsche Cayenne cars are plug-in and done. A few log a fault until the lamp check is coded off; ask us if your car is particular about lamp diagnostics.

Q: How long does the installation take?

A: Typically about 1-2 hours for a DIYer with basic tools, depending on access to the headlight.

Q: What happens if the part fails early?

A: There is a 12-month warranty on the part.

Q: One side only - is that fine?

A: Yes, but it's often wise to replace both sides if they are the same age, as the other may fail soon due to identical wear.

Recommendation

If your Cayenne's DRL has failed, replacing the LED board is the smart, cost-effective fix. Our Porsche Cayenne DRL LED Board (2019-2023) is a direct-fit, plug-and-play solution that restores your DRLs without the expense of a new headlight assembly. Each unit undergoes pre-shipment QC and is backed by a 1-year warranty. Check the product page for current pricing and fitment details.

Standards reference: for the Porsche Cayenne, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Replacing the failed board or guide restores the function those rules describe.
