How Much Does It Cost to Fix Ford U625 DRLs? (2022-2024)

TL;DR

On 2022-2024 Ford Explorer (U625) models, the daytime running light often fails when the LED driver module overheats or moisture corrodes its internals, leaving one or both DRLs dim, flickering, or dead. No wiring changes on the Ford U625. A small number of cars report a bulb-out warning afterwards until that check is coded out.

What Is the DRL Module on a 2022-2024 Ford Explorer?

In this vehicle, the DRL module is the small electronic unit that powers and controls the LED light guide—the clear, shaped strip that gives the Explorer its signature daytime glow. It's not the whole headlight; it's a serviceable component that can be replaced on its own.

Why the DRL Fails on the U625 Explorer

The failure is usually mechanical and thermal, not mysterious. The LED driver board sits in a tight, heat-soaked area behind the headlight. Over thousands of heat cycles, solder joints crack and capacitors degrade, causing flicker or intermittent operation. Meanwhile, the light guide itself can yellow from UV exposure, and the module's seal can let in moisture that corrodes the board. The result: a DRL that looks dim, patchy, or completely out.

How to Diagnose a Bad DRL Module

Start by confirming the headlight assembly isn't physically damaged (cracks, deep scratches). Then swap the left and right modules: if the problem moves with the module, the module is faulty. If it stays on the same side, the issue is likely wiring or the light guide. Also check for condensation inside the housing—if present, address the seal or replace the module with a fresh, sealed unit.

Step-by-Step Replacement (1-2 Hours)

1. Disconnect the negative battery terminal. 2. Remove the front bumper cover or inner fender liner to access the back of the headlight (varies slightly by trim). 3. Unbolt the headlight assembly and pull it forward gently. 4. Locate the DRL module—a small box attached to the headlight housing. 5. Unplug the connector and remove the mounting screws. 6. Install the new module, reconnect the plug, and reinstall the headlight. 7. Reconnect the battery and test. Usually nothing is needed on the Ford U625 - it is a direct electrical swap. A minority of cars with self-checking lamps flag a bulb-out warning that a short coding change clears.

Fitment Tips and What to Check

Confirm you're ordering the correct side: 6420000013 and 6420000014 are left and right specific. Inspect the connector pins for corrosion and apply dielectric grease before plugging in. Make sure the new module's seal is seated properly to prevent future moisture ingress. If the light guide is heavily yellowed, replacing only the module may improve function but not appearance—consider whether the guide itself needs attention.

What Replacement Costs

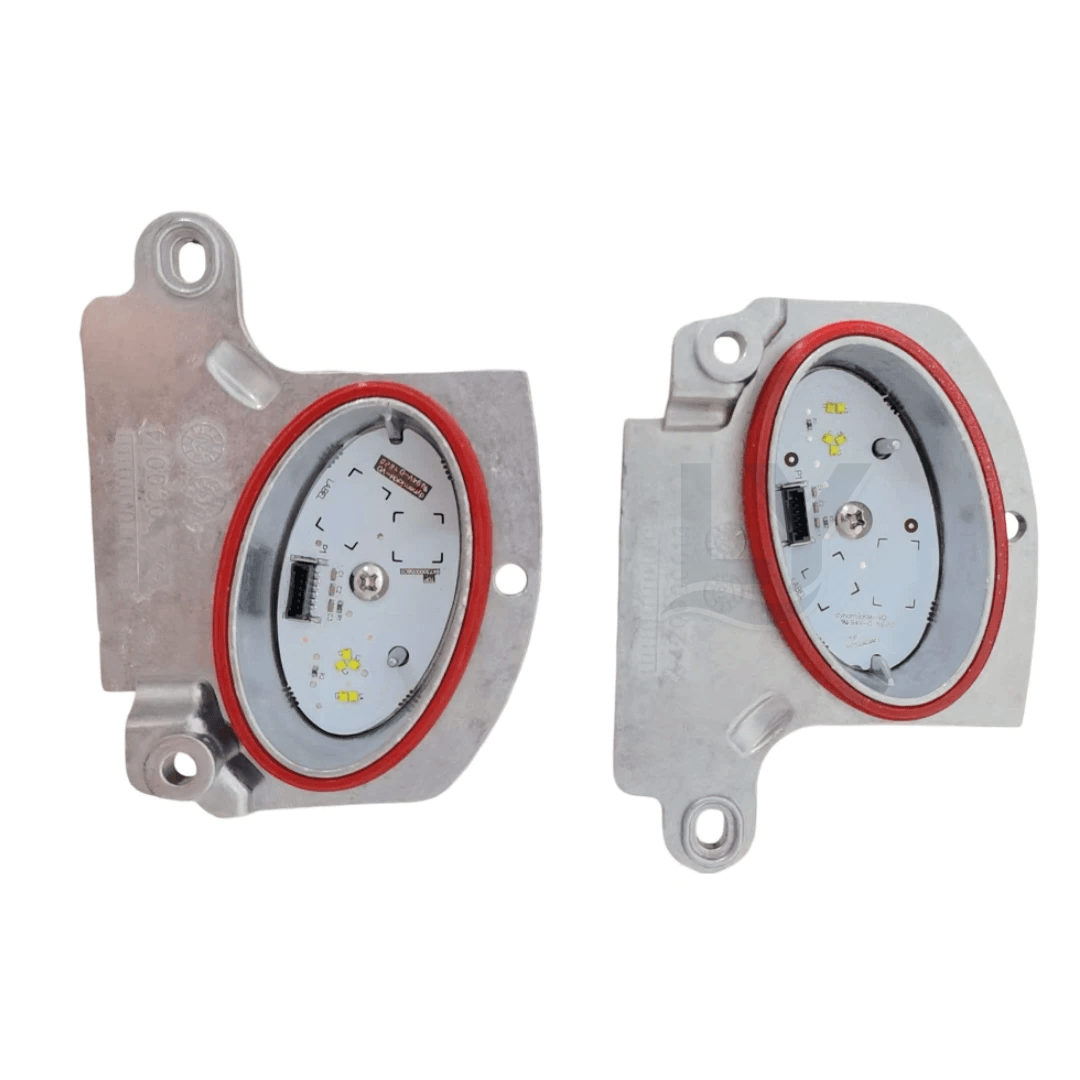

A dealer or OEM complete headlight assembly for the 2022-2024 Explorer typically runs in the several-hundred to over-a-thousand-dollar range per side, plus installation. A replacement DRL module or LED board, by contrast, costs a fraction of that and reuses your original housing. For current pricing on the exact module for your Explorer, check the product page: OEM 6420000013 6420000014 Ford Explorer DRL Module (2022-2024).

Fix vs Replace

If your housing is undamaged, the module-only fix is the sensible route.

FAQ

Q: Will I need to reprogram anything after installing the new DRL module?

A: No. The Ford U625 takes the part without wiring work. Whether a dash warning follows depends on the car's own diagnostics rather than on the board.

Q: How do I know if I need the left or right module?

A: The part numbers 6420000013 and 6420000014 correspond to specific sides—check your vehicle's left/right designation before ordering.

Q: Can I drive with a failed DRL?

A: In many regions, a non-functioning DRL is a safety inspection issue. It's best to fix it promptly.

Q: Is there a warranty on the replacement module?

A: Yes, it comes with a 1-year warranty and is QC-checked before shipment.
