MG MG5 DRL Replacement Guide (2019-2020)

TL;DR

On 2019-2020 MG MG5 models, the daytime running lights (DRLs) commonly fail because the LED board or light guide strip degrades from heat and moisture, causing dim, flickering, or dead DRLs. Most MG MG5 cars are plug-in and done. A few log a fault until the lamp check is coded off; ask us if your car is particular about lamp diagnostics. This restores your DRLs for a fraction of the cost of a new headlight assembly.

What Goes Wrong with MG5 DRLs

The DRL light guide / LED board is the component that channels and emits the white daytime running light in your MG5's headlight housing. Over time, heat cycling from the LED itself and the engine bay causes the light guide to yellow or the LED board's solder joints to crack, leading to dim or flickering DRLs. Moisture ingress through compromised seals can also corrode the board, causing intermittent or complete failure. Unlike a simple bulb swap, these are integrated units, so when they fail, the whole DRL section goes dark or becomes noticeably weaker than the other side.

Diagnosing the Issue

Start by comparing both sides: if one DRL is dim, yellowed, or has dark spots, the LED board or light guide is likely failing. Check for condensation inside the headlight, which points to a seal issue that may have damaged the board. A quick test is to tap the headlight gently while the DRL is on—if it flickers, there's a loose connection or cracked solder joint on the board. If both sides fail simultaneously, check fuses and wiring first, but on the MG5, the LED board is the usual culprit.

Step-by-Step Replacement

1. Disconnect the battery negative terminal for safety. 2. Remove the front bumper or gain access to the headlight assembly (consult your service manual for exact fasteners). 3. Unplug the headlight connectors and remove the headlight from the vehicle. 4. Open the headlight housing by removing the lens or accessing the rear cover—some MG5 models allow access without baking. 5. Carefully detach the old DRL LED board and light guide, noting how the connectors and clips are oriented. 6. Install the new MG MG5 DRL LED Board, ensuring all clips and seals are seated properly. 7. Reassemble in reverse order, reconnect the battery, and test the DRLs before final reassembly.

Fitment Tips

Ensure you have the correct part for your 2019-2020 MG MG5, as trims may vary. Handle the light guide with clean gloves to avoid oils that can cause hot spots. Apply dielectric grease to the connectors to prevent future corrosion. If the headlight seal is compromised, reseal it with butyl rubber to keep moisture out. Always test the DRLs before fully reassembling the bumper to avoid rework.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative but costs significantly more—typically several hundred dollars for a new unit, versus a fraction of that for the DRL LED board. The LED board replacement takes about 1-2 hours and keeps your original housing, preserving the factory fit and appearance. A new assembly may take similar time to install but is a more expensive route.

Recommended Solution

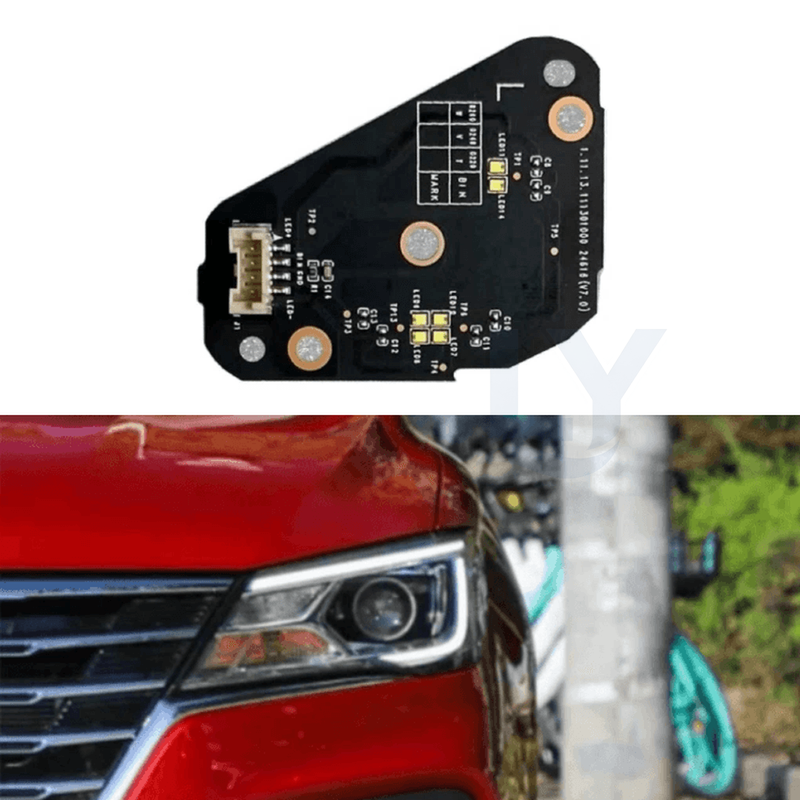

For a cost-effective and straightforward fix, we recommend the MG MG5 DRL LED Board (2019-2020). No wiring changes on the MG MG5. A small number of cars report a bulb-out warning afterwards until that check is coded out. It comes with a 1-year warranty, giving you peace of mind. Restore your MG5's DRLs and avoid the expense of a full headlight replacement.

FAQ

Usually nothing is needed on the MG MG5 - it is a direct electrical swap. A minority of cars with self-checking lamps flag a bulb-out warning that a short coding change clears.

A: The MG MG5 takes the part without wiring work. Whether a dash warning follows depends on the car's own diagnostics rather than on the board.

Q: How long does the installation take?

A: Typically about 1-2 hours for a DIY install, depending on your experience.

Q: Is the part covered by a warranty?

A: Yes - the part carries a one-year warranty.

Q: Can I replace just the LED board without removing the headlight?

A: On some MG5 models, you can access the board through the rear cover, but most require headlight removal for proper installation.

Standards reference: for the MG MG5, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The swap reinstates exactly the behaviour those standards describe.
