2023-2025 Jeep Compass DRL Flickering or Dim? Here's the Fix

TL;DR

On 2023-2025 Jeep Compass models, the daytime running light (DRL) often fails due to a faulty LED board or a degraded light guide strip inside the headlight assembly. The Jeep Compass needs nothing beyond the swap in most cases; the exception is cars that monitor their lamps and log a fault until the check is disabled.

What Goes Wrong with the Jeep Compass DRL

The DRL on the 2023-2025 Jeep Compass uses an LED board that powers a light guide strip, which is the clear plastic channel that distributes light evenly across the DRL. Over time, heat cycling from the LEDs can cause solder joints on the board to crack, leading to flickering or complete failure. The light guide itself can also yellow from UV exposure or develop micro-cracks, scattering light unevenly. Moisture ingress through a compromised seal can corrode the board, causing intermittent operation. These issues are common on this generation of Compass, especially in regions with temperature extremes.

How to Diagnose the Problem

First, check if the DRL is completely dead, flickering, or dim. If one side works and the other doesn't, swap the left and right LED boards—if the problem follows the board, it's faulty. If the issue stays with the original side, inspect the wiring and connector for corrosion or loose pins. A visual inspection of the light guide can reveal yellowing or cracks. Since the DRL is integrated into the headlight, you'll need to remove the headlight assembly or access it from behind the wheel well, depending on the model. No special tools are needed beyond basic sockets and trim removal tools.

Step-by-Step Replacement

1. Disconnect the negative battery terminal for safety. 2. Remove the front bumper or wheel well liner to access the headlight mounting bolts (consult your service manual for exact locations). 3. Unbolt the headlight assembly and gently pull it forward. 4. Disconnect the electrical connectors from the back of the headlight. 5. Remove the old LED board by unscrewing it or releasing the retaining clips. 6. Install the new LED board, ensuring it seats properly against the light guide. 7. Reconnect all plugs and test the DRL before reassembling. 8. Reinstall the headlight, bumper, and battery terminal. Approximate install time: 1-2 hours.

Fitment Tips

Ensure the replacement board matches your Compass's model year and trim—2023-2025 models may have different connector types. Before final installation, clean the light guide with a soft cloth and plastic-safe cleaner to remove any debris. Check that the rubber seal around the headlight is intact to prevent future moisture issues. Apply dielectric grease to the connectors to ward off corrosion. If the light guide is severely yellowed, consider replacing it as well for optimal output.

Fix vs Replace: What's Best for Your Compass?

Replacing the entire headlight assembly can cost several hundred to over a thousand dollars per side, depending on the source, and may require programming. In contrast, replacing just the DRL LED board is a fraction of the cost of a new headlight assembly, takes about 1-2 hours, and lets you keep your original housing. For most owners, the LED board replacement is the smarter, more economical choice. If your housing is damaged or the light guide is beyond saving, a full assembly might be necessary.

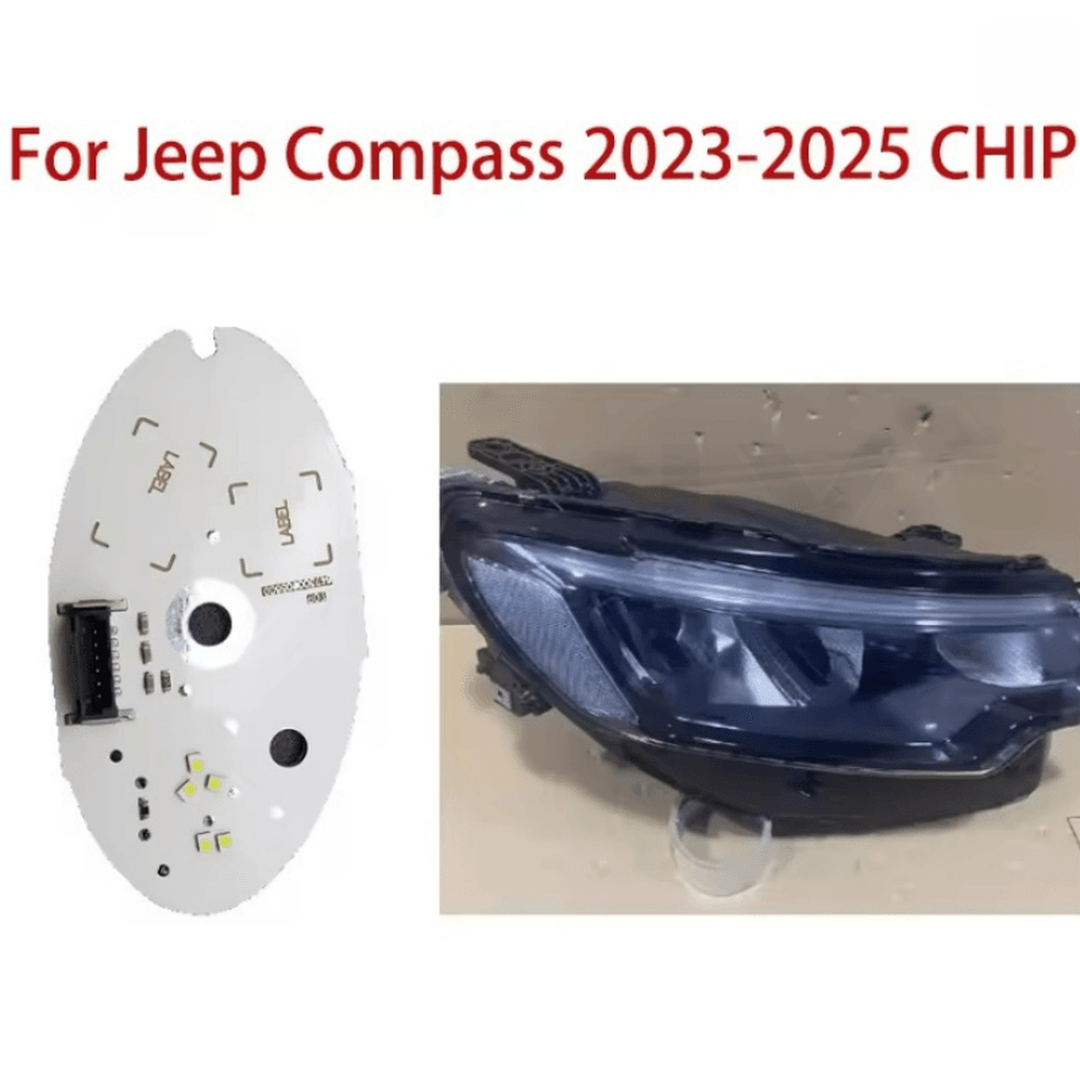

Recommended Fix: Jeep Compass DRL LED Board

For a reliable, plug-and-play solution, we recommend the Jeep Compass DRL LED Board (2023-2025). Most Jeep Compass cars are plug-in and done. A few log a fault until the lamp check is coded off; ask us if your car is particular about lamp diagnostics. Each unit undergoes pre-shipment QC, and it's backed by a 1-year warranty. Check the product page for current pricing and availability.

FAQ

No wiring changes on the Jeep Compass. A small number of cars report a bulb-out warning afterwards until that check is coded out.

A: Usually nothing is needed on the Jeep Compass - it is a direct electrical swap. A minority of cars with self-checking lamps flag a bulb-out warning that a short coding change clears.

Q: Is this an afternoon job or a weekend one?

A: Typically about 1-2 hours for a DIY install.

Q: What if my DRL still doesn't work after replacing the board?

A: Check the wiring and connectors for damage or corrosion; if the issue persists, there may be a problem with the vehicle's electrical system.

Q: Is the replacement board covered by a warranty?

A: It is covered for a year against defects.
