How Much Does It Cost to Fix Jaguar Xel DRLs? (2016-2019)

TL;DR

On 2016-2019 Jaguar XEL models, the daytime running light (DRL) often fails due to a cracked or yellowed light guide strip or a burnt-out LED board inside the headlight. Replacing just the DRL light guide strip or LED board restores function at a fraction of the cost of a new headlight assembly.

What Is a DRL Light Guide Strip or LED Board?

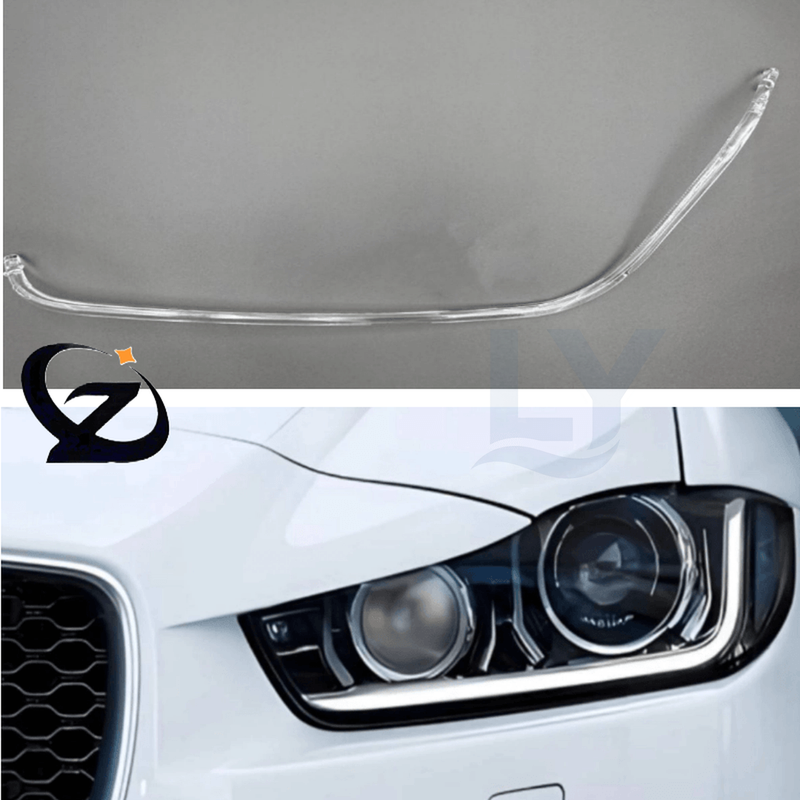

For the Jaguar XEL, the DRL light guide strip is a transparent plastic channel that distributes light from an LED board (a small circuit board with LEDs) to create the signature daytime running light shape. When either component fails, the DRL may dim, flicker, or stop working entirely.

Common Failure Symptoms

Noticeable issues include one or both DRLs not illuminating, uneven brightness, a yellow or cloudy appearance, or flickering. These symptoms typically worsen over time and can be intermittent at first.

Why DRLs Fail on the Jaguar XEL

Heat cycling from the LED board causes expansion and contraction, which can crack the light guide or degrade the LED board's solder joints. UV exposure yellows the plastic light guide, reducing light output. Moisture ingress through worn seals can corrode the LED board, leading to short circuits or complete failure.

Diagnosing the Problem

First, check if the DRL is completely dead or just dim. Swap left and right components if possible to see if the issue follows the part. Inspect the light guide for cracks or yellowing, and look for condensation inside the headlight housing. A simple multimeter can test for power at the LED board connector; if power is present but the light doesn't work, the LED board or light guide is faulty.

Step-by-Step Replacement

1. Disconnect the negative battery terminal. 2. Remove the headlight assembly (typically requires removing bumper trim and a few bolts). 3. Carefully open the headlight housing by removing screws or clips. 4. Detach the old light guide or LED board; unplug the connector. 5. Install the new component, ensuring it clicks into place. 6. Reassemble in reverse order. Approximate DIY time: 1-2 hours. The Jaguar XEL needs nothing beyond the swap in most cases; the exception is cars that monitor their lamps and log a fault until the check is disabled.

Fitment Tips

Ensure the replacement part matches your exact model year (2016-2019 Jaguar XEL). Check that all seals are properly seated to prevent future moisture ingress. Handle the light guide by the edges to avoid fingerprints or scratches. Pre-shipment QC ensures the part arrives in good condition.

What Replacement Costs

A dealer/OEM headlight assembly for the Jaguar XEL typically costs a significant amount, often in the hundreds to over a thousand dollars per side. In contrast, a replacement DRL light guide strip or LED board costs a fraction of that. For current pricing on our Jaguar XEL DRL Light Guide Strip (2016-2019), visit the product page.

Fix vs Replace

Our Recommendation

If your Jaguar XEL's DRL has failed, replacing the light guide strip or LED board is a cost-effective solution that restores function without the expense of a full headlight assembly. Our Jaguar XEL DRL Light Guide Strip (2016-2019) is designed for easy installation and comes with a 1-year warranty. Most Jaguar XEL cars are plug-in and done. A few log a fault until the lamp check is coded off; ask us if your car is particular about lamp diagnostics.

FAQ

Q: Will I need to code the new DRL after installation?

A: No wiring changes on the Jaguar XEL. A small number of cars report a bulb-out warning afterwards until that check is coded out.

Q: Can the guide be swapped on its own?

A: Yes, if only the light guide is damaged, you can replace it separately. However, if the LED board is faulty, it should also be replaced.

Q: How long does the installation take?

A: For a DIY installer, it typically takes about 1-2 hours.

Q: What cover do I get on this part?

A: Yes, our DRL light guide strip comes with a 1-year warranty.

Standards reference: for the Jaguar XEL, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fitting the new board or guide brings the lamp back to its regulated function.
