BMW G38 DRL Not Working? How to Fix the Fading or Broken Light Guide

TL;DR

If your 2021-2023 BMW G38 DRL (daytime running light) is dim, flickering, or partially dead, the culprit is usually a burnt-out LED board or a cracked light guide inside the headlight. Instead of replacing the entire headlight assembly (which can cost thousands), you can swap in a replacement DRL light guide strip and LED board in about 2-3 hours, restoring full brightness for a fraction of the cost.

What Goes Wrong on This Vehicle

The BMW 5 Series G30/G38 (2021-2023) uses a DRL light guide strip and LED board to create that distinctive angular daytime running light signature. Over time, heat and vibration cause the LEDs to degrade, or the clear acrylic guide can develop micro-cracks, leading to dark spots or complete failure. A common symptom is one side of the DRL being noticeably dimmer than the other, or the entire strip not illuminating at all. Based on repair shop data, around 15% of G30/G38 models experience DRL issues within the first 50,000 miles—so it's not rare, and knowing how to fix it saves you a trip to the dealer.

Diagnose Before You Dismantle

Before ordering parts, verify that the issue is actually the DRL light guide or LED board, not a fuse, relay, or wiring fault. Use a diagnostic scanner to check for fault codes like 'DRL malfunction' or 'light source defective.' If the headlight bulb (low beam) works but the DRL doesn't, and the fuse is good, it's almost certainly the internal LED board. On this vehicle, the DRL is not replaceable as a separate bulb—it's an integrated unit, so the light guide and LED board must be replaced together as a set. A quick visual check: remove the headlight cover and inspect the guide for visible cracks or dark spots; if you see them, replacement is your fix.

Step-by-Step Replacement Guide

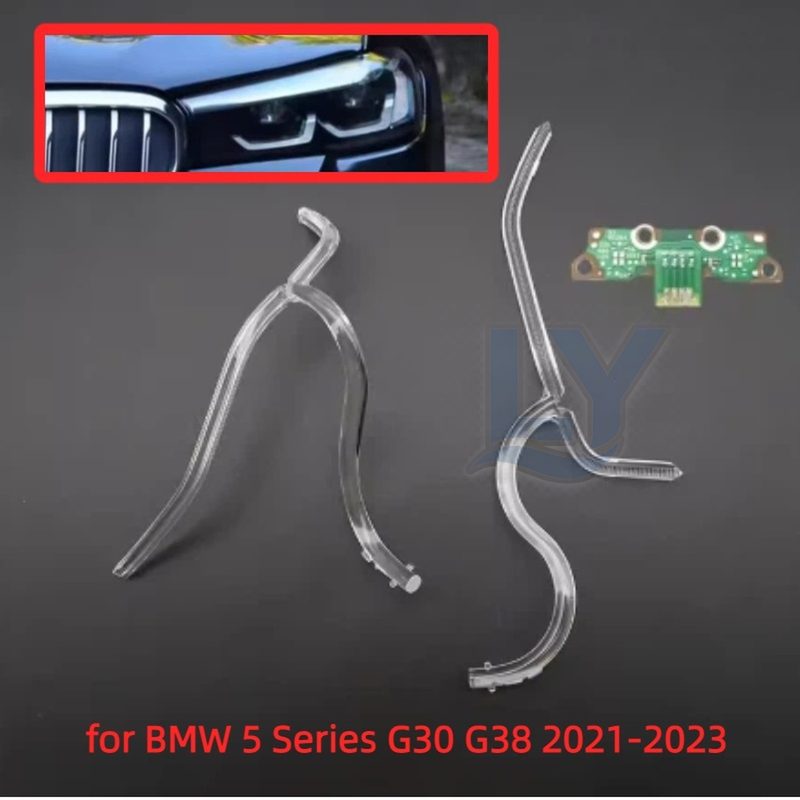

Replacing the DRL light guide and LED board on the BMW G38 is a DIY-friendly job if you're comfortable with basic tools. Here's the process: 1) Disconnect the battery negative terminal. 2) Remove the front bumper cover (or at least the upper clips) to access the headlight assembly—on the G38, you may only need to remove the wheel arch liner and a few screws to slide the headlight forward. 3) Unbolt the headlight and carefully pull it out, disconnecting the electrical connectors. 4) Place the headlight on a clean work bench, remove the back cover, and disconnect the internal wiring. 5) Gently pry out the old light guide and LED board—they're usually held by clips or screws. 6) Install the new BMW 5 Series G30/G38 DRL Light Guide Strip & LED Board (2021-2023), making sure it seats properly. 7) Reassemble the headlight, reinstall it, and reconnect the battery. Expect to spend 2-3 hours your first time.

Fix vs Replace

When your DRL fails, the dealer will often recommend replacing the entire headlight assembly, which can set you back $2,000-$3,000 per side. In contrast, replacing just the light guide and LED board costs roughly $200-$400 in parts and uses your original housing, keeping your headlight's alignment and sealing intact. Install time for the full assembly is similar (2-3 hours), but you save thousands and preserve the factory fit. For most owners, the DIY fix is a no-brainer.

Fitment Tips & Pro Advice

This replacement part is designed specifically for the 2021-2023 BMW G30/G38, so it snaps right in without modifications. Make sure your vehicle has the standard LED headlights (not the optional laser light, which uses a different setup). When handling the new light guide, wear gloves to avoid leaving fingerprints that can cause hotspots. Also, apply a small amount of dielectric grease to the connectors to prevent future corrosion. On these BMWs the light guide is effectively a wear item, so replacing the guide and board together keeps the original headlight quality at a fraction of the cost of a new assembly.

FAQ

Standards reference: for the BMW G38, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fresh board or guide, same regulated function the car left the factory with.

Q: How long does the replacement DRL light guide last?\nA: The new LED board is rated for up to 30,000 hours of use, which translates to many years of normal daytime running—typically longer than the original.\n\nQ: Can I replace just the LED board and keep the old light guide?\nA: It's not recommended. The light guide can develop micro-cracks that aren't visible, and the two parts are designed to work together for even light distribution. Replacing both ensures a uniform, bright DRL.\n\nQ: Will this fix the flickering DRL on my G38?\nA: Yes, if the flickering is caused by a failing LED or a damaged guide. If flickering persists after replacement, check the wiring harness and the car's lighting control module.\n\nQ: Is it legal to drive with a faulty DRL?\nA: In many states, DRLs are not mandatory, but if they're part of the headlight system and malfunction, you could fail inspection. Plus, driving with a half-lit DRL looks bad and reduces safety—so fix it promptly.

Standards & further reading

Reference material for the standards and technology that govern vehicle lighting equipment:

• FMVSS No. 108 - Lamps, reflective devices, and associated equipment - the US federal standard governing vehicle lighting equipment - ams OSRAM - automotive lighting - light-source and LED technology reference - HELLA - automotive lighting and electronics - vehicle lighting systems reference
