BMW F35 DRL Not Working? Fix It with a New Light Guide & LED Board

TL;DR

On 2013-2015 BMW F35 models, the DRL light guide strip and LED board commonly fail due to heat cycling, UV yellowing, and moisture ingress. Treat coding as possible rather than required on the BMW F35: most cars settle immediately, a few need the lamp check coded off before the warning clears.

What Goes Wrong with F35 DRLs

The DRL system in the F35 uses a light guide—a clear plastic strip that distributes light from an LED board—to create the signature halo effect. Over time, the LED board's electronics can degrade from constant heat cycling, while the light guide itself may yellow from UV exposure or develop microcracks that scatter light unevenly. Moisture entering the headlight housing accelerates corrosion on the LED board, leading to flickering or complete failure. The result is dim, patchy, or dead DRLs that spoil the car's look and reduce daytime visibility.

Diagnosing the Problem

First, check if both DRLs are affected or just one. If one side is out, swap the LED board from the working side to confirm the fault. Inspect the light guide for yellowing, cracks, or condensation inside the housing. A multimeter can test for power at the LED board connector; if voltage is present but the board doesn't light, the board is faulty. If the board lights but the guide appears dull or patchy, the guide needs replacement. No error messages typically appear on the iDrive screen for DRL failures, so visual inspection is key.

Step-by-Step Replacement

1. Ensure the car is off and the headlight switch is in the '0' position. 2. Remove the front bumper or gain access to the headlight housing—on the F35, this usually involves removing the wheel arch liner and some bumper bolts. 3. Disconnect the headlight wiring harness and remove the headlight assembly. 4. Carefully open the headlight housing by removing the lens (heat may be required to soften butyl sealant). 5. Unclip the old light guide strip and LED board; they are usually held by torx screws or plastic tabs. 6. Install the new light guide and LED board, ensuring all connectors click into place. 7. Reassemble the headlight, reinstall it on the car, and reconnect the harness. 8. Test the DRLs before fully reassembling the bumper. Approximate time: 1-2 hours for a DIYer with basic tools.

Fitment Tips

This replacement is designed specifically for 2013-2015 BMW 3 Series F30/F35 models. The BMW F35 takes the board without wiring changes, but BMW lamp diagnostics can flag it: a bulb-out warning or intermittent flicker that clears once the cold/warm check is coded out. Worth knowing before you start. Before installation, perform a quick QC: check the LED board for any signs of damage and ensure the light guide is free of scratches. Use gloves to avoid oily fingerprints on the guide, which can cause hot spots. When resealing the headlight, use fresh butyl sealant to prevent future moisture ingress. If you're unsure about opening the headlight, consider professional installation to avoid damaging the housing.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's far more expensive—typically hundreds to over a thousand dollars per side for a new OEM unit. In contrast, replacing just the light guide and LED board costs a fraction of that and keeps your original housing, which is already matched to your car's paint and fitment. Install time is similar for both options, but the part-level fix is more economical and environmentally friendly.

Recommended Fix

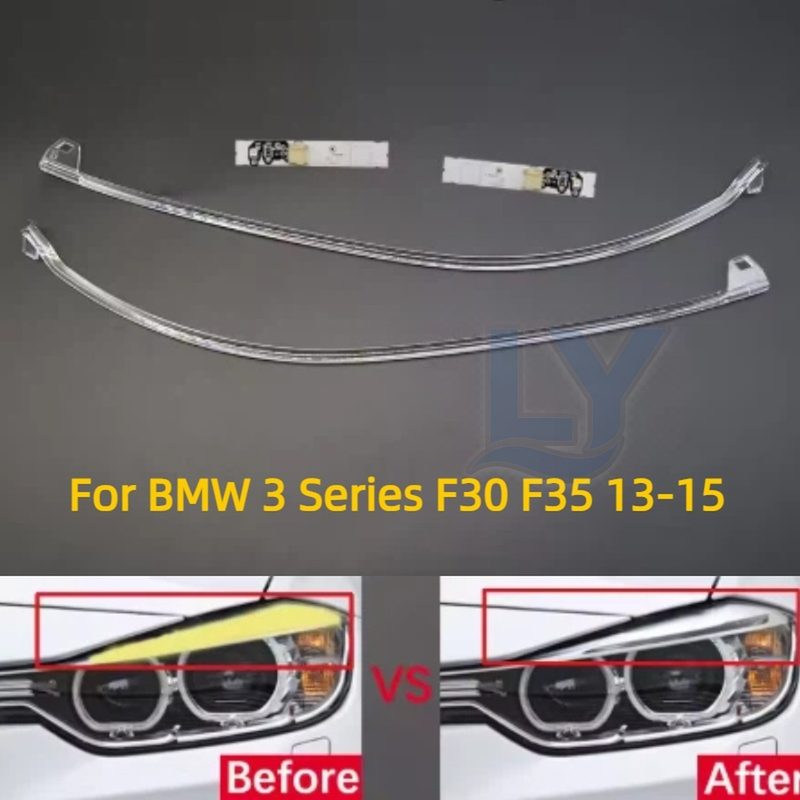

For a cost-effective solution that restores your DRLs to like-new condition, we recommend the BMW 3 Series F30/F35 DRL Light Guide Strip & LED Board (2013-2015). This direct-fit part is pre-shipment QC checked and comes with a 1-year warranty. It's plug-and-play, so you can get back on the road with bright, reliable DRLs in no time.

FAQ

Standards reference: for the BMW F35, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The swap reinstates exactly the behaviour those standards describe.

Q: Will this fix work if only one DRL is out? A: Yes, you can replace just the faulty side, but we recommend inspecting both sides for wear.

Electrically it is a straight swap on the BMW F35. The variable is the car's own lamp monitoring, which some owners have to code out to clear a dash warning.

Q: How long does the installation take? A: Typically 1-2 hours for a DIYer, depending on tools and experience.

Q: Is the part covered by a warranty? A: Yes, it comes with a 1-year warranty.
