2014-2019 BMW F15 DRL Flickering or Dim? Here's the Fix

TL;DR

On 2014-2019 BMW X5 F15 models, the daytime running lights often fail due to a burnt-out LED board or a yellowed light guide. Replacing the DRL LED board restores proper DRL function without replacing the entire headlight assembly.

What Goes Wrong on the F15 X5

The DRL system in the F15 X5 uses a light guide (a clear plastic strip) and an LED board (the module that powers the LEDs). Over time, heat cycling from the LEDs causes the board's solder joints to crack, leading to flickering or complete failure. Meanwhile, UV exposure yellows the light guide, making the DRL appear dim or off-color. Moisture ingress through degraded seals can also corrode the board, accelerating failure.

How to Diagnose DRL Issues

First, check if both DRLs are out or just one. If one side works, swap the LED boards left to right—if the problem follows the board, it's faulty. Inspect the light guide for yellowing or cracks. Use a multimeter to check for power at the board's connector; if power is present but LEDs don't light, the board is likely dead. Also look for condensation inside the headlight, indicating a seal issue.

Step-by-Step Replacement

1. Disconnect the battery negative terminal. 2. Remove the headlight assembly (typically 4-6 screws and some plastic rivets). 3. Carefully unclip the back cover of the headlight. 4. Locate the DRL LED board—it's a small circuit board attached to the light guide. 5. Disconnect the wiring harness from the board. 6. Remove the screws holding the board and gently pull it out. 7. Install the new board in reverse order, ensuring the connector clicks. 8. Reassemble and test before fully reinstalling the headlight. Approximate time: 1-2 hours per side.

Fitment Tips

This DRL LED board is designed for 2014-2017 BMW X5 F15 models with factory LED DRLs. The BMW F15 connector is factory-matched, so no wiring is touched. If a warning shows up afterwards it is the cold/warm lamp check, cleared by a short coding session rather than a part swap. Ensure the light guide is clean and undamaged; if yellowed, consider replacing it too. Apply dielectric grease to the connector to prevent future corrosion. Always handle the board by its edges to avoid damaging the LEDs.

Fix vs Replace

Replacing the entire headlight assembly can cost upwards of $1,000-$2,000 per side at a dealer, while a DRL LED board is a fraction of that cost. The board replacement takes 1-2 hours and keeps your original housing, preserving fit and finish. If the housing is cracked or the projector is damaged, a full replacement might be necessary, but for DRL issues alone, the board is the smart fix.

Recommended Fix

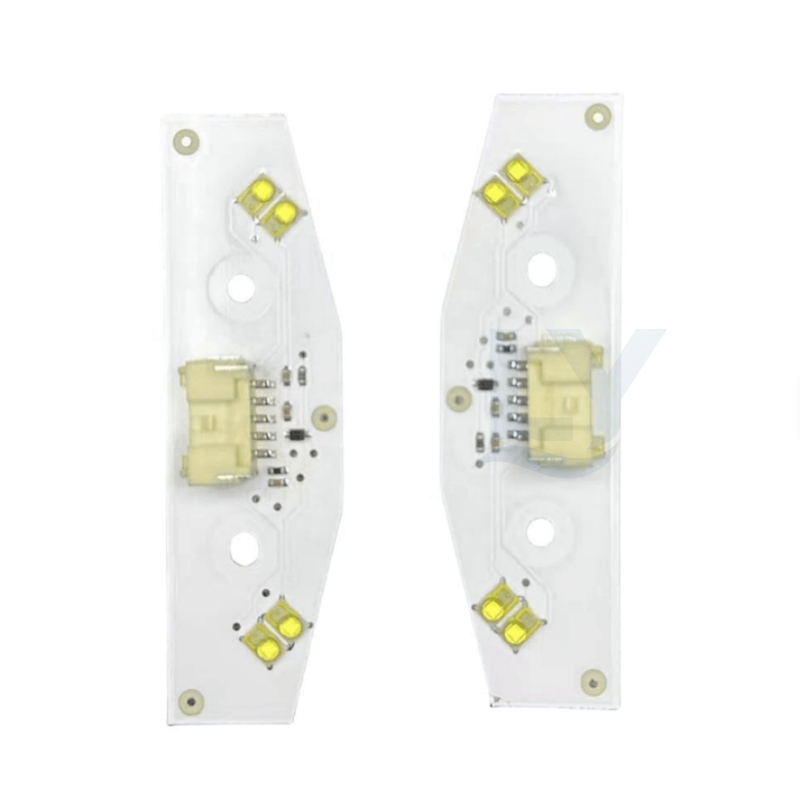

For a reliable, direct-fit solution, choose the BMW X5 DRL LED Board (2014-2017). It's pre-shipment QC checked, plug-and-play, and backed by a 1-year warranty.

FAQ

Q: Is a flickering DRL sorted by this part?

A: Yes, if the flickering is caused by a faulty LED board, this replacement will resolve it.

Q: Do I need coding after installation?

A: Usually not - on the BMW F15 the board is a direct electrical swap. Some cars still log a DRL check warning or flicker until that check is coded off (Bimmercode or equivalent), so we do not promise an error-free result on every BMW F15.

Q: What is the realistic time commitment here?

A: Approximately 1-2 hours per side for a DIY install.

Q: What if my light guide is yellowed?

A: We recommend replacing the light guide as well to restore full brightness.

Standards reference: for the BMW F15, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. Fresh board or guide, same regulated function the car left the factory with.
