2011-2013 BMW E70 DRL Flickering or Dim? Here's the Fix

TL;DR

The DRL light guide strips and LED boards on 2011-2013 BMW X5 E70 models commonly fail due to heat cycling, UV yellowing, and moisture ingress, causing dim, discolored, or dead daytime running lights. Electrically it is a straight swap on the BMW E70. The variable is the car's own lamp monitoring, which some owners have to code out to clear a dash warning.

What Goes Wrong on the E70 DRL

The DRL system in the 2011-2013 BMW X5 E70 uses a light guide strip and an LED board to distribute light evenly across the housing. Over time, the LED board can suffer from heat cycling, leading to cracked solder joints or failed emitters. The light guide strip itself can yellow from UV exposure or develop microcracks that scatter light unevenly. Moisture ingress through compromised seals accelerates corrosion on the board and clouding of the guide. The result is DRLs that appear dim, patchy, or completely dark—often while the low and high beams still work.

Diagnosing the Issue

Before ordering parts, confirm the fault. With the engine running and DRLs active, inspect each side. If one side is noticeably dimmer or yellowed, the issue is likely the light guide or LED board. Swap the LED board from the working side to the faulty side (if accessible) to see if the problem follows the board. Check for moisture inside the housing, which points to a seal failure. If both sides are equally dim, the issue may be elsewhere, but on the E70, the light guide and board are common failure points.

Step-by-Step Replacement

1. Ensure the vehicle is off and the key is removed. 2. Access the DRL housing: on the E70, you may need to remove the wheel arch liner or front bumper for better access, depending on the side. 3. Disconnect the electrical connector to the LED board. 4. Carefully unclip or unscrew the light guide strip and LED board assembly from the housing. 5. Install the new light guide strip and LED board, ensuring it seats properly. 6. Reconnect the electrical connector. 7. Test the DRL function before reassembling everything. 8. Reassemble in reverse order. Direct swap on the BMW E70 - no wiring. Some platforms log a fault until the DRL check is coded out, which surprises people, so plan for it.

Fitment Tips

This replacement is designed for 2011-2013 BMW X5 E70 models. Always verify your exact model year and trim. Handle the light guide strip with care—fingerprints or scratches can affect light output. Ensure all seals are correctly positioned to prevent future moisture ingress. If you're unsure about bumper removal, consult a repair manual for your specific model.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's significantly more expensive and time-consuming. A dealer or OEM assembly can cost well over a thousand dollars, while our DRL light guide strip and LED board kit is a fraction of the cost of a new headlight assembly and takes about 1-2 hours to install. You keep your original housing, maintaining factory fit and appearance. For current pricing, please visit the product page.

FAQ

Q: Does the new unit need coding?

A: Nothing is usually required on the BMW E70. Where a warning does appear it is the lamp self-check objecting to the new board, not a fault - coding the check off ends it.

Q: How much time should I set aside for this?

A: Typically about 1-2 hours for a DIY install, depending on your experience and tool access.

Q: Is there any guarantee on the part?

A: There is a 12-month warranty on the part.

Q: Can I replace just one side?

A: Yes, but it's often recommended to replace both sides for consistent light output and appearance.

Recommended Solution

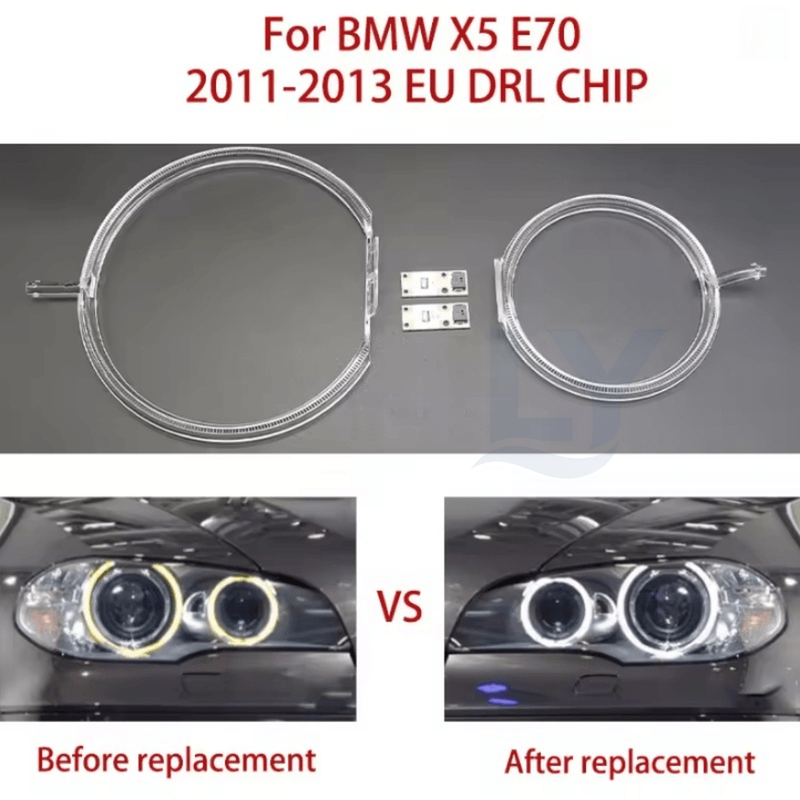

For a reliable fix that restores your DRLs to like-new condition, we recommend the BMW X5 E70 DRL Light Guide Strip & LED Board (2011-2013). Each unit undergoes pre-shipment QC to ensure quality, and it's backed by a 1-year warranty.

Standards reference: for the BMW E70, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The parts this guide covers return the lamp to that defined behaviour.
