2016-2018 Audi A6 C7 DRL Fix: Why Your Daytime Running Lights Fail and How to Replace the Light Guide & LED Board

TL;DR

On 2016-2018 Audi A6 C7 models, the daytime running light (DRL) often fails because the LED board overheats and the light guide strip yellows or cracks from UV exposure. The Audi A6 C7 takes the part without wiring work. Whether a dash warning follows depends on the car's own diagnostics rather than on the board.

What Goes Wrong with the A6 C7 DRL

The DRL on the 2016-2018 Audi A6 C7 uses a light guide strip that carries light from an LED board. Over time, heat cycling from the LED board causes solder joints to crack and the board to degrade. Meanwhile, UV exposure yellows the polycarbonate light guide, and moisture ingress can cloud it further. The result: one or both DRLs appear dim, patchy, or completely dead. This is a common failure on these model years, often appearing first as a yellow tint or a dark spot in the strip.

How to Diagnose the Problem

First, confirm the DRL is the issue, not the headlight assembly. Turn on the DRL and observe: a yellow or dim strip points to the light guide; a completely dark strip could be the LED board or a wiring fault. Swap the left and right LED boards if accessible—if the problem moves, the board is faulty. Check for moisture inside the housing, which accelerates failure. If the housing is cracked or the projector is damaged, a full assembly may be needed. Otherwise, the DRL light guide and LED board are the likely culprits.

Step-by-Step Replacement

1. Disconnect the battery and remove the headlight assembly (typically 2-3 bolts after bumper removal). 2. Remove the rear cover and unplug the DRL connector. 3. Carefully release the light guide strip from its clips—avoid bending it. 4. Unscrew the LED board and unplug it. 5. Install the new LED board and light guide, ensuring all clips engage. 6. Reconnect the DRL plug, reinstall the headlight, and test before reassembling the bumper. Approximate DIY time: 1-2 hours per side.

Fitment Tips

This guide is specific to 2016-2018 Audi A6 C7 models. Ensure the light guide is seated flush; misalignment causes hot spots. Do not touch the LED surface with bare fingers. Use dielectric grease on connectors to prevent moisture. Straight swap on the Audi A6 C7. The only variable is whether the car's lamp diagnostics object, which a short coding session resolves. Pre-shipment QC ensures the board and guide are matched and tested.

Fix vs Replace

On the Audi A6 C7 the connector is factory-matched and no wiring is touched. If a warning appears it comes from the car's lamp monitoring, not the part. Replacing just the DRL light guide and LED board keeps your original housing and costs a fraction of that. Install time is about 1-2 hours versus several hours for a full assembly swap.

The Right Part for Your A6 C7

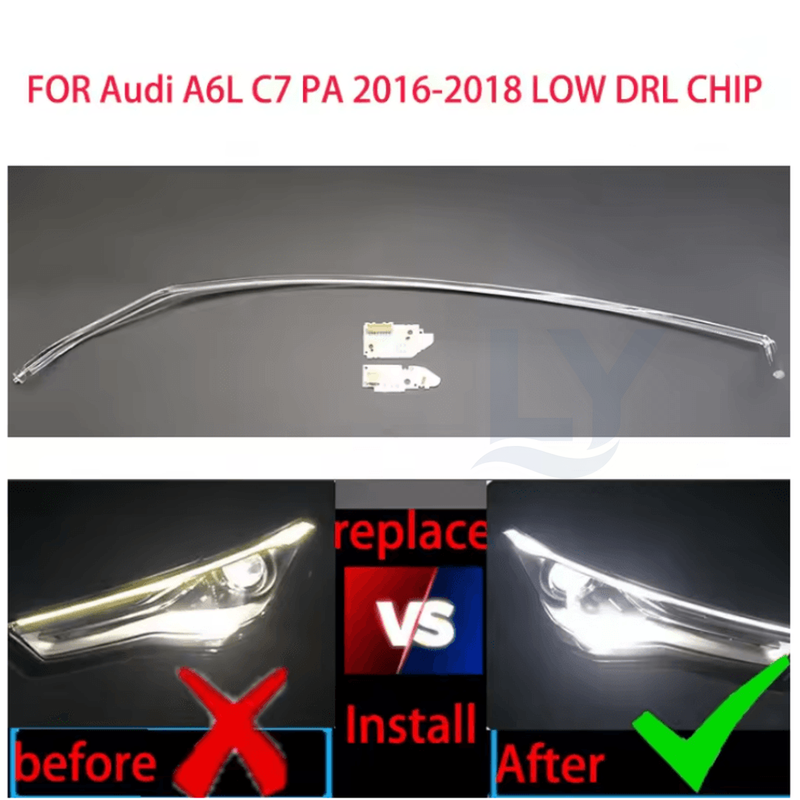

For a direct fit and lasting repair, use the Audi A6 C7 LOW DRL Light Guide Strip & LED Board (2016-2018). It's designed specifically for these model years, is plug-and-play, and comes with a 1-year warranty. Check the product page for current pricing.

FAQ Q: Both A6 C7 DRLs went dark at the same time - do I need two boards? A: Boards rarely fail simultaneously, so when both sides die together the fault is usually upstream: the DRL fuse, the control module, or the wiring between them. Check the fuse first (the owner's manual lists the slot), then the module. Only replace the boards once the shared parts test fine. Q: There is moisture inside my A6 C7 headlight - will a new board survive it? A: Not unless you deal with the moisture first. Water ingress is what usually kills the board, so dry the housing completely, replace the butyl seal and check the vent caps, then fit the new board. A cracked lens means the assembly itself is due.

Standards reference: for the Audi A6 C7, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. With the failed part replaced, the lamp meets that definition again.

Fit and go on most Audi A6 C7 cars. Where a warning does appear it is the lamp self-check, cleared by coding rather than by swapping parts.

Q: How long does the replacement take? A: About 1-2 hours per side for a DIY install.

Q: Can I replace just the light guide without the LED board? A: It's best to replace both together, as the LED board often degrades alongside the guide.

Q: What if my DRL is still dim after replacement? A: Check for moisture in the housing or a wiring issue; if the housing is damaged, a full assembly may be needed.
