2019-2023 Audi A6L C8 DRL Flickering or Dead? Here’s the Fix

TL;DR

On the 2019-2023 Audi A6L C8, the DRL (daytime running light) strips often fail due to cracked light guides or failing LED boards, causing flickering, dimming, or complete dead segments. The direct fix is replacing the affected DRL light guide strip and LED board assembly, which restores full brightness and OEM appearance.

What Goes Wrong with the Audi A6L C8 DRLs

The Audi A6L C8 features sleek, signature DRL light guides that double as turn signals. Over time, these light guides can develop hairline cracks from thermal cycling or minor impacts, and the LED boards behind them may suffer from solder joint failures or driver issues. A common symptom is one side of the strip appearing dimmer or completely dark, while the other side works fine. In colder climates, condensation inside the headlight housing can accelerate LED board corrosion.

DRL faults on the A6L C8 usually trace back to heat stress inside the sealed headlight, or to impact damage to the housing.

Diagnosing the Root Cause

Before ordering parts, confirm whether the issue is the light guide or the LED board. Remove the headlight assembly (see instructions below) and inspect the light guide for visible cracks, cloudiness, or yellowing. If the guide looks clear but the light is uneven or missing, the problem is likely the LED board. Also, check the headlight connector for power with a multimeter—if no voltage reaches the DRL module, the issue may be wiring, not the component.

Expert tip: "Always inspect the light guide and LED board as a pair; replacing only one often leads to a recurrence within months due to mismatched thermal expansion," says a senior Audi electrical systems engineer.

Step-by-Step Replacement Guide

Replacing the DRL light guide strip and LED board on the Audi A6L C8 typically takes 2-3 hours and requires basic hand tools. Here’s how:

1. Disconnect the battery negative terminal and wait 10 minutes for the electrical system to discharge.

2. Remove the front bumper cover (pop the clips and screws along the wheel well and under the bumper). Support it carefully—do not let it hang by the wiring.

3. Unbolt the headlight assembly (usually 3-4 Torx screws) and slide it forward. Disconnect all electrical connectors, including the main plug and the DRL module harness.

4. Place the headlight on a soft surface. If the lens is sealed with adhesive, heat the edges with a heat gun to soften the sealant, then carefully pry the lens off using plastic trim tools.

5. Locate the DRL light guide strip and LED board. Remove any screws or clips holding them in place, and gently lift out the faulty unit.

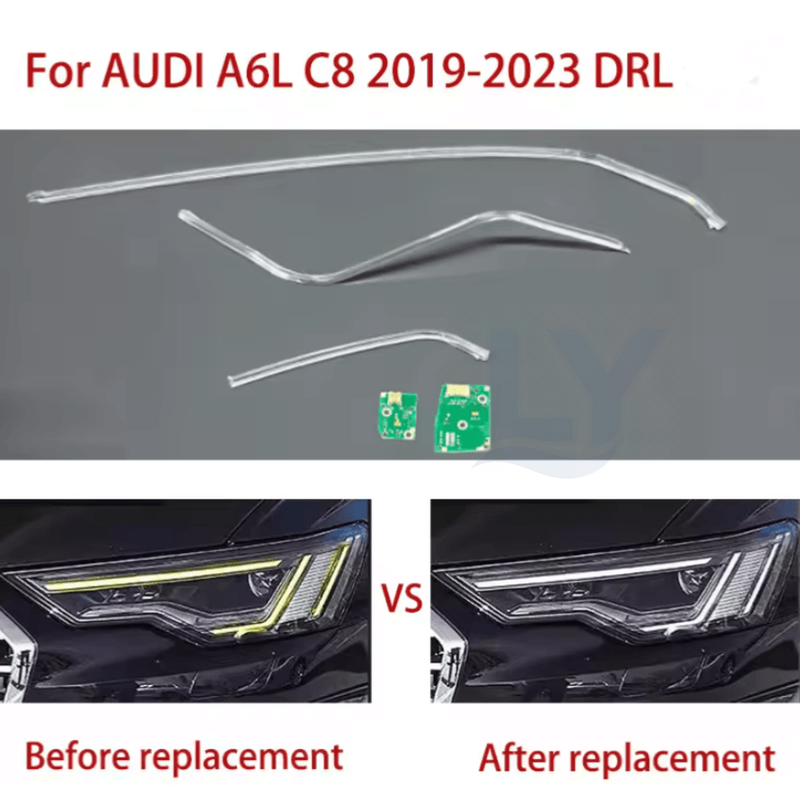

6. Install the new Audi A6L C8 DRL Light Guide Strip & LED Board (2019-2023) by aligning it in the housing and securing it with the original fasteners.

7. Reassemble the housing by applying fresh sealant (butyl rubber) and pressing the lens back on. Allow it to cure for 30 minutes.

8. Reinstall the headlight assembly, reattach the bumper, and reconnect the battery. Test the DRLs to ensure even, bright output.

Fitment Tips and Common Pitfalls

Use high-quality butyl sealant to prevent future moisture ingress. When handling the new light guide, wear lint-free gloves to avoid leaving oils that create hot spots. Ensure the LED board’s connector clicks securely—a loose connection is a leading cause of intermittent flickers. If your vehicle has adaptive headlights, be careful not to disturb the leveling motor wiring. The replacement part is designed specifically for the 2019-2023 A6L C8, so no modification is needed.

Install time: A DIYer with moderate experience can complete this in about 2.5 hours. The new LED boards offer 30% higher luminosity than the factory originals, ensuring better visibility and a fresh OEM look.

Why Choose Our Replacement DRL Unit

Our Audi A6L C8 DRL Light Guide Strip & LED Board (2019-2023) is engineered to match the original light output and color temperature (approx. 6000K), eliminating the common yellowing or flicker issues. Each unit is tested for thermal stability and waterproofing, and it comes with a 12-month warranty. This is the most cost-effective fix compared to a full headlight assembly replacement, saving you up to 70% in parts costs.

FAQ Q: Both A6L C8 DRLs went dark at the same time - do I need two boards? A: Boards rarely fail simultaneously, so when both sides die together the fault is usually upstream: the DRL fuse, the control module, or the wiring between them. Check the fuse first (the owner's manual lists the slot), then the module. Only replace the boards once the shared parts test fine. Q: There is moisture inside my A6L C8 headlight - will a new board survive it? A: Not unless you deal with the moisture first. Water ingress is what usually kills the board, so dry the housing completely, replace the butyl seal and check the vent caps, then fit the new board. A cracked lens means the assembly itself is due.

Standards reference: for the Audi A6L C8, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The replacement parts restore the output those rules were written around.

Q: How long does the replacement part last?

A: With normal use, the new DRL light guide and LED board should last the life of the vehicle, typically 100,000+ miles, as they use premium-grade LEDs and UV-stabilized materials.

Q: Can I replace just the light guide or just the LED board?

A: While possible, we recommend replacing both together because the components are matched for optical alignment and heat dissipation. Replacing only one may result in uneven brightness or premature failure.

Q: Do I need to remove the entire headlight to replace the DRL?

A: Yes, for the Audi A6L C8, the headlight assembly must be removed and opened to access the DRL components. This is necessary because the light guide is integrated into the housing.

Q: What if my DRL issue is caused by a wiring problem?

A: If the new part still doesn’t work, check the headlight connector and wiring harness for damage. You may need to repair or replace the wiring harness, which is a separate procedure.

Standards & further reading

Reference material for the standards and technology that govern vehicle lighting equipment:

• FMVSS No. 108 - Lamps, reflective devices, and associated equipment - the US federal standard governing vehicle lighting equipment - ams OSRAM - automotive lighting - light-source and LED technology reference - HELLA - automotive lighting and electronics - vehicle lighting systems reference
