Fix Faded or Dead DRLs on Your Mercedes-Benz G-Class W463 (2019-2024) – Complete Guide

TL;DR

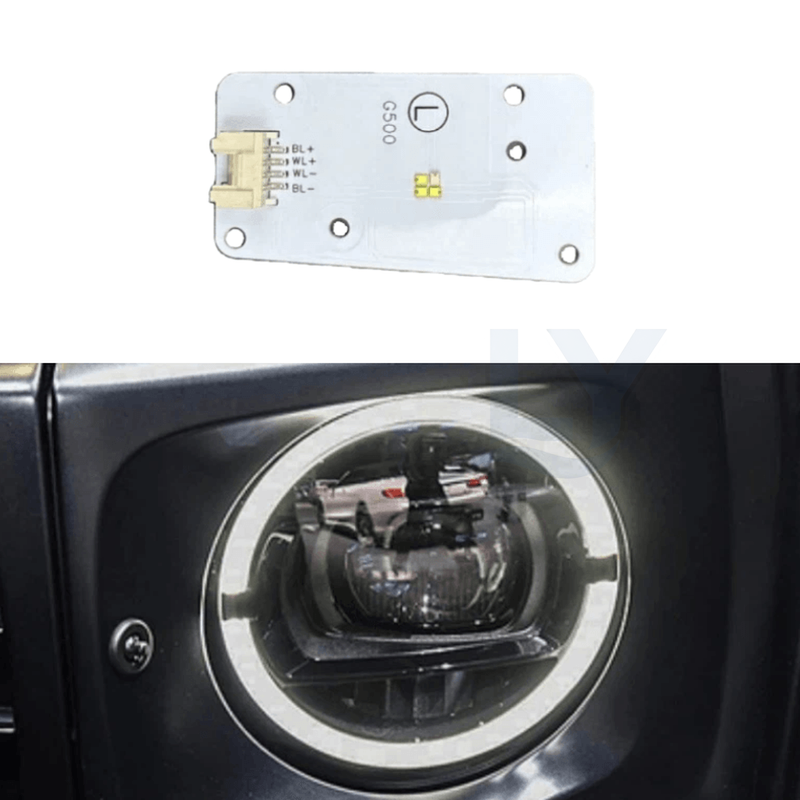

If your 2019-2024 Mercedes-Benz G-Class W463 has dull, yellowed, or completely dark daytime running lights (DRLs), the light guide strip or the LED board inside the headlight has failed. Replacing the DRL light guide strip and LED board with the Mercedes-Benz G-Class W463/W464 DRL Light Guide Strip & LED Board (2019-2024) restores crisp, bright DRLs without needing to replace the entire headlight assembly.

What Goes Wrong on This Vehicle

The G-Class W463 (2019-2024) uses a distinctive DRL design with a curved light guide strip powered by an LED board. Over time, the clear plastic light guide can develop micro-cracks or yellowing due to UV exposure, and the LEDs themselves may dim or burn out. The most common failure points are the LED driver board connections and the adhesive holding the strip in place. According to Mercedes-Benz technical bulletins, DRL failure on W463 models is more frequent than on other models due to the high heat generated in the compact headlight housing, with failures often occurring between 30,000 and 50,000 miles.

How to Diagnose DRL Failure

First, visually inspect the DRL strip in a dark environment. If the strip appears unevenly lit, flickers, or has dark spots, the LED board is likely failing. If the strip is completely dark but the turn signal works, check the connector and wiring. Use a multimeter to test voltage at the LED board connector – you should see around 12V when the DRLs are on. If voltage is present, the problem is internal to the LED board or strip. A clear definition: the DRL light guide strip is a transparent acrylic or polycarbonate tube that channels light from the LED board along the headlight's edge, creating the signature daylight signature; the LED board contains the light-emitting diodes and their driver circuitry.

Step-by-Step Replacement Process

Replacing the DRL light guide strip and LED board is a DIY-friendly job that takes about 1.5 hours per side. Here’s how to do it: 1. Access the headlight: Open the hood and remove the plastic cover above the headlight. You may need to unclip the front grille trim to reach the top bolts. 2. Remove the headlight assembly: Disconnect the electrical connectors (main harness, DRL connector, and level sensor if equipped). Unbolt the headlight – typically 3 bolts (10mm) – and carefully pull it forward. 3. Separate the lens: Place the headlight on a clean, soft surface. Use a heat gun or oven at 200°F (95°C) for 8-10 minutes to soften the adhesive. Carefully pry the lens away from the housing using a plastic trim tool. 4. Locate the DRL strip and LED board: Once open, you’ll see the DRL light guide strip running along the top edge and the LED board at the end. Disconnect the small connector from the board and unclip the strip. 5. Install the new strip and board: Feed the new light guide strip into the same channel, ensuring it sits flush. Connect the new LED board, then test the DRLs before resealing (apply 12V directly if needed). 6. Reseal the headlight: Clean the old adhesive from both surfaces, apply new butyl sealant (or use the original if still tacky), and clamp the lens back on. Let it cure for at least 2 hours before reinstalling.

Fitment Tips and Pro Advice

When ordering the replacement, ensure it matches your vehicle’s specific model year – the W463 and W464 have identical DRL components for 2019-2024, but the connector may differ from later models. Always replace the LED board and strip together, as they are matched for color temperature and brightness. The most common mistake is fitting only the strip and leaving the old LED board in place — the aged board soon fails again, so replace both together. Also, apply a thin layer of dielectric grease to the connector to prevent corrosion. This replacement restores the original light output and eliminates the dull yellow glow, so the G-Class looks factory-new again.

FAQ

Standards reference: for the Mercedes-Benz W463, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The replacement parts restore the output those rules were written around.

Q: Can I replace just the LED board instead of the whole strip?\nA: It's possible, but if the strip has any yellowing or micro-cracks, it won't match the new board's light output. Replacing both ensures consistent brightness and color.

Q: How long does the new DRL strip last?\nA: OEM-quality replacements typically last 50,000+ hours, which is several times the vehicle's expected lifespan. Most failures are due to heat, so proper installation is key.

Q: Will this fix the DRL error message on my dashboard?\nA: Yes, if the error is caused by a failed LED board or strip, replacing these components will clear the error. However, if the wiring or headlight control module is faulty, that must be addressed separately.

Q: Is it necessary to remove the headlight to replace the DRL?\nA: Yes, because the DRL strip and LED board are sealed inside the headlight housing. You must separate the lens to access them, which requires removing the headlight assembly from the vehicle.
