Mercedes-Benz G-Class W464 DRL Failure: How to Fix Dim or Yellowed Daytime Running Lights (2019-2024)

TL;DR

On the 2019-2024 Mercedes-Benz G-Class W464, the daytime running light (DRL) often becomes dim, yellowed, or partially dark because the light guide strip and its LED board degrade from heat and UV exposure. Replacing the DRL light guide strip and LED board restores crisp, uniform DRL illumination. The Mercedes-Benz W464 takes the part without wiring work. Whether a dash warning follows depends on the car's own diagnostics rather than on the board.

What Goes Wrong with W464 DRLs

The DRL on the W464 uses a light guide (a clear plastic strip that distributes light) and an LED board (the light source). Over time, heat cycling from the LEDs causes the light guide to yellow and become brittle. UV exposure from sunlight accelerates this yellowing, reducing light output and causing uneven illumination. Moisture ingress through degraded seals can also lead to condensation inside the housing, further dimming the DRL or causing flickering. These failures are common on 2019-2024 models, especially in hot or humid climates.

Diagnosing the Issue

First, visually inspect the DRL with the engine running. Look for sections that are dimmer, yellowed, or completely out. Check for condensation inside the headlight housing, which indicates a moisture problem. If only one side is affected, swap the LED board from the working side to confirm whether the board or the light guide is at fault. A simple multimeter can test for voltage at the LED board connector; if voltage is present but the light is out, the board or guide is faulty. No dashboard warning is typical for DRL failure, so visual inspection is key.

Step-by-Step Replacement

1. Ensure the vehicle is off and cool. Open the hood and locate the headlight assembly. 2. Remove the plastic cover behind the headlight to access the DRL module. 3. Disconnect the electrical connector from the LED board. 4. Carefully release the retaining clips or screws holding the light guide and LED board in place. 5. Gently pull out the old light guide and LED board as a unit. 6. Install the new DRL light guide strip and LED board, ensuring it seats properly. 7. Reconnect the electrical connector. 8. Test the DRL before reassembling. 9. Reinstall the cover and any removed trim. Approximate time: 1-2 hours. Straight swap on the Mercedes-Benz W464. The only variable is whether the car's lamp diagnostics object, which a short coding session resolves.

Fitment Tips

This DRL light guide strip and LED board is designed specifically for 2019-2024 Mercedes-Benz G-Class W463/W464 models. Ensure the part matches your exact model year and headlight type (LED or halogen). During installation, avoid touching the light guide's surface with bare fingers, as oils can cause hot spots. Check that all seals are properly seated to prevent future moisture ingress. If you encounter resistance, do not force the components; they should fit snugly with minimal pressure.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's far more expensive. A new OEM assembly can cost well over a thousand dollars per side, plus installation. In contrast, replacing just the DRL light guide and LED board costs a fraction of that, takes about 1-2 hours, and allows you to keep your original headlight housing. This approach is also more environmentally friendly and preserves the factory fit and finish.

Recommended Solution

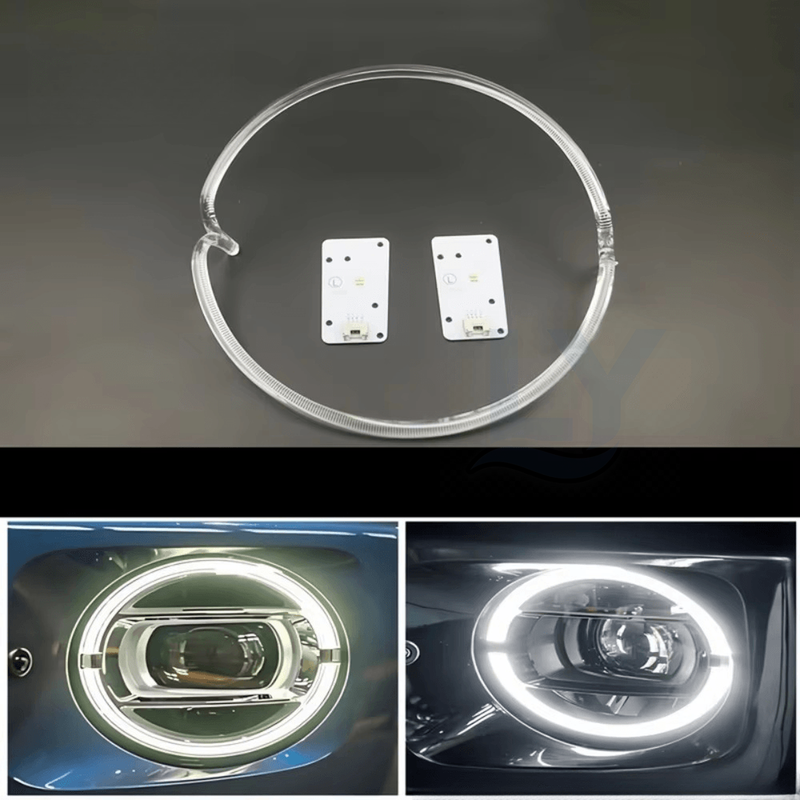

For a reliable fix, we recommend the Mercedes-Benz G-Class W463/W464 DRL Light Guide Strip & LED Board (2019-2024). On the Mercedes-Benz W464 the connector is factory-matched and no wiring is touched. If a warning appears it comes from the car's lamp monitoring, not the part. It comes with a 1-year warranty, giving you peace of mind. Restore your G-Class's distinctive DRL look without the cost of a full headlight replacement.

FAQ

Standards reference: for the Mercedes-Benz W464, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. With the failed part replaced, the lamp meets that definition again.

Fit and go on most Mercedes-Benz W464 cars. Where a warning does appear it is the lamp self-check, cleared by coding rather than by swapping parts.

Q: How long does the installation take? A: Typically about 1-2 hours for a DIY install, depending on your experience.

Q: Does this fit both left and right sides? A: Yes, the part is sold individually and fits either side; order two if both are faulty.

Q: Is there a warranty? A: Yes, it comes with a 1-year warranty against defects.
