2019-2021 Honda Vezel DRL Flickering or Dim? Here's the Fix

TL;DR

On 2019-2021 Honda Vezel, the DRL LED board often fails due to heat and moisture, causing dim, flickering, or dead daytime running lights. Replacing the board with a new unit restores proper DRL function, typically in about 1-2 hours with basic tools. Usually nothing is needed on the Honda Vezel - it is a direct electrical swap. A minority of cars with self-checking lamps flag a bulb-out warning that a short coding change clears.

What Goes Wrong with the Vezel's DRL

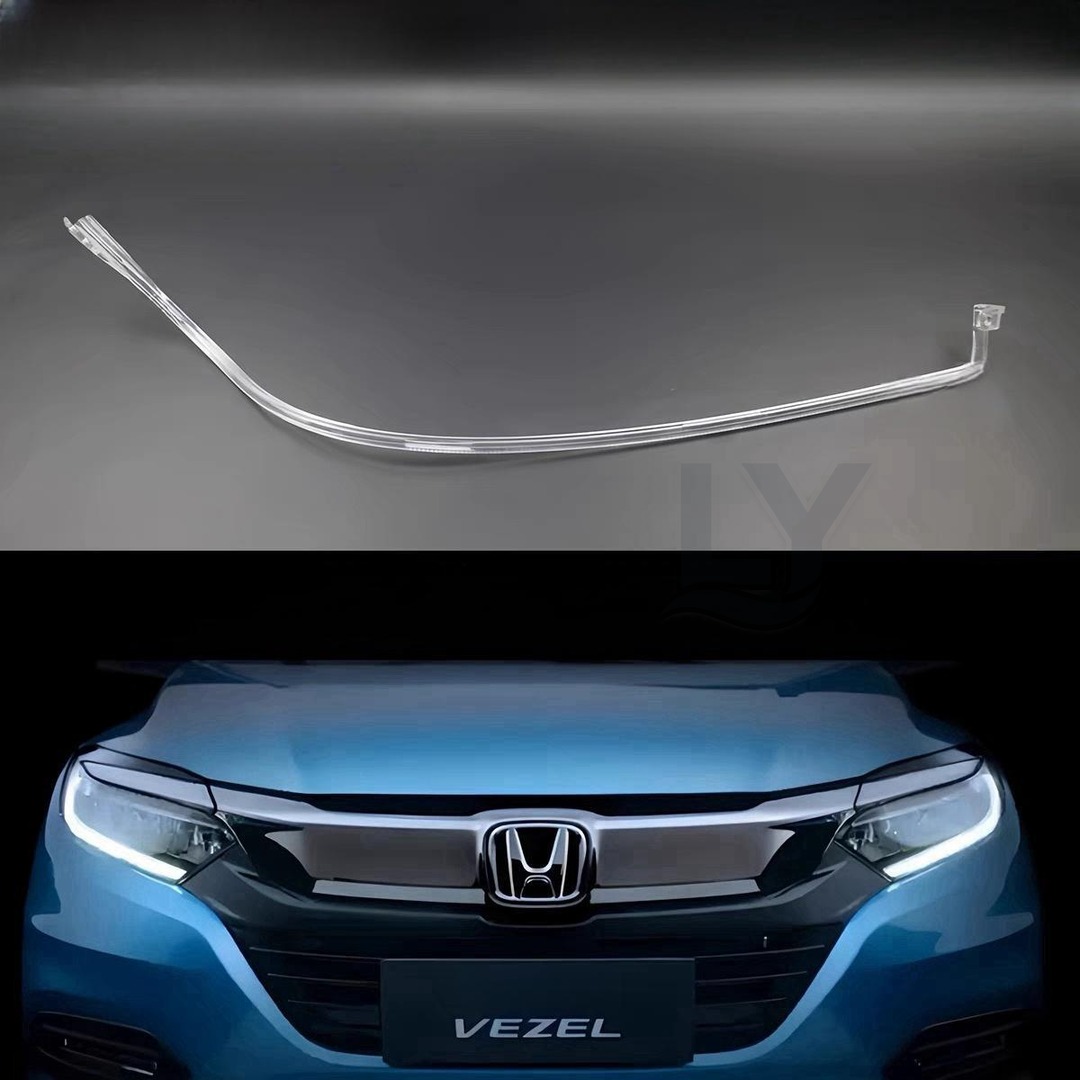

The DRL system in the 2019-2021 Honda Vezel uses a light guide and an LED board. The light guide is a transparent plastic strip that distributes light from the LEDs; the LED board is the circuit board with the LEDs themselves. Over time, heat cycling from the LEDs and UV exposure can cause the light guide to yellow, reducing brightness. Moisture can also enter the headlight housing, corroding the LED board and leading to flickering or complete failure. These issues are common on this model due to the compact design and exposure to the elements.

How to Diagnose the Problem

First, check if both DRLs are affected or just one. If one side is dim or out, swap the LED boards left to right. If the problem moves with the board, the board is faulty. If it stays on the same side, the issue may be wiring or the light guide. Inspect the light guide for yellowing or cracks. Also check for moisture inside the housing, which can indicate a seal failure. A simple multimeter can test for power at the connector, but often visual inspection is enough.

Step-by-Step Replacement

1. Disconnect the battery negative terminal for safety. 2. Remove the headlight assembly: typically, you'll need to remove the front bumper or at least the upper clips and bolts to access the headlight mounting bolts. Consult a service manual for your exact model. 3. Once the headlight is out, remove the rear cover to access the LED board. 4. Unplug the connector and unscrew the board from the housing. 5. Install the new LED board, ensuring the connector clicks into place. 6. Reassemble in reverse order, taking care not to overtighten screws. Approximate time: 1-2 hours per side, depending on experience.

Fitment Tips

Ensure the new LED board is designed specifically for the 2019-2021 Honda Vezel. The Honda Vezel takes the part without wiring work. Whether a dash warning follows depends on the car's own diagnostics rather than on the board. Before installation, inspect the light guide for damage; if it's heavily yellowed, consider replacing it as well. Apply dielectric grease to the connector to prevent future corrosion. Check that all seals are properly seated to keep moisture out. Pre-shipment QC ensures the board is functional, but always test before final assembly.

Fix vs Replace

Straight swap on the Honda Vezel. The only variable is whether the car's lamp diagnostics object, which a short coding session resolves. A new LED board is a fraction of the cost of a new headlight assembly and keeps your original housing. Install time is similar, but you avoid the hassle of matching paint or coding. For a cost-effective repair that maintains OEM fit, the LED board is the smarter choice.

Recommended Solution

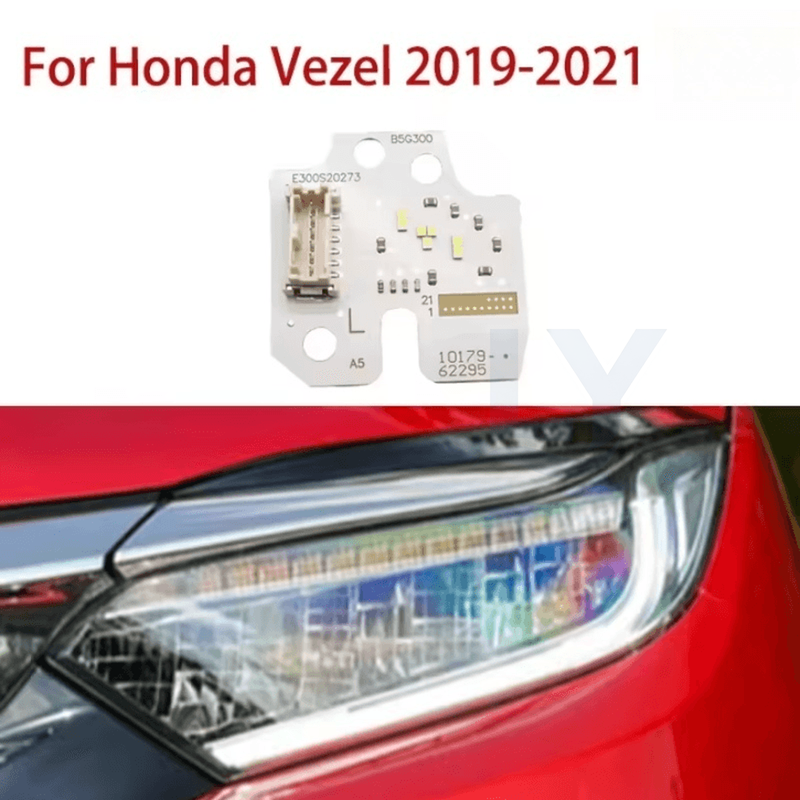

For a reliable fix, choose our Honda Vezel DRL LED Board (2019-2021). It's designed as a direct replacement, backed by a 1-year warranty and pre-shipment QC. Restore your Vezel's DRLs to full operation without breaking the bank.

FAQ

Q: Will this LED board fix my flickering DRL?

A: Yes, if the flickering is caused by a faulty LED board. However, if the issue is wiring or the light guide, replacing the board alone may not solve it.

Q: Do I need to remove the front bumper to install this?

A: On most 2019-2021 Vezel models, you'll need to remove or partially detach the front bumper to access the headlight mounting bolts. Refer to your service manual for specific steps.

Q: Is coding required after installation?

A: On the Honda Vezel the connector is factory-matched and no wiring is touched. If a warning appears it comes from the car's lamp monitoring, not the part.

Q: What if my light guide is yellowed?

A: If the light guide is yellowed, it may reduce brightness even with a new LED board. We recommend inspecting and possibly replacing the light guide as well.

Standards reference: for the Honda Vezel, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. The parts this guide covers return the lamp to that defined behaviour.
