BMW G60 DRL Replacement Guide (2024)

TL;DR

On the 2024 BMW G60 5 Series, the daytime running lights (DRLs) commonly fail due to a faulty LED board or light guide that suffers from heat cycling, UV yellowing, or moisture ingress. Replacing the DRL LED board restores proper illumination without the need for a full headlight assembly replacement. The BMW 5 Series G60 DRL LED Board (2024-2024) is a plug-and-play solution that typically takes about 1-2 hours to install.

Understanding the DRL System on the G60

The DRL system on the 2024 BMW G60 5 Series uses a light guide (a clear plastic strip that distributes light) and an LED board (the module that generates the light). The LED board is a circuit board with LEDs that shine into the light guide, creating the distinctive daytime running light signature. Over time, these components can degrade, leading to dim, flickering, or completely non-functional DRLs.

What Goes Wrong with G60 DRLs

Several issues can cause DRL failure on the G60. Heat cycling—repeated expansion and contraction from temperature changes—can crack solder joints on the LED board or degrade the LEDs themselves. UV exposure can yellow the light guide, reducing light output and changing the color temperature. Moisture ingress through compromised seals can corrode the electronics, causing flickering or total failure. These problems often appear gradually, starting with dimming or intermittent operation before complete failure.

Diagnosing DRL Problems

Before replacing parts, confirm the issue. Check for error messages on the iDrive screen related to lighting. Visually inspect the DRL for dimness, color shift (yellowing), or flickering. Test both sides: if only one side fails, it's likely a component issue rather than a wiring or control module problem. If both sides fail simultaneously, check fuses and wiring first. A simple multimeter can test for power at the LED board connector, but accessing it requires removing the headlight or inner fender liner.

Step-by-Step Replacement

Replacing the DRL LED board on the G60 is a moderate DIY task. Start by ensuring the vehicle is off and the key is far away to avoid accidental activation. Remove the front bumper or inner fender liner to access the headlight housing (consult your service manual for exact steps). Once the headlight is accessible, remove the rear cover to reach the DRL module. Disconnect the electrical connector and unscrew the LED board from the housing. Carefully remove the old board and light guide if replacing both. Install the new LED board, ensuring it seats properly and the connector clicks into place. Reassemble in reverse order, then test the DRLs before fully securing panels. The BMW G60 takes the board without wiring changes, but BMW lamp diagnostics can flag it: a bulb-out warning or intermittent flicker that clears once the cold/warm check is coded out. Worth knowing before you start.

Fitment Tips and Considerations

This LED board is designed specifically for the 2024 BMW G60 5 Series. Ensure you're working in a clean, dry environment to prevent contamination. Handle the light guide with gloves to avoid fingerprints that can affect light output. Check the condition of seals and replace if necessary to prevent future moisture issues. If you're unsure about removing the bumper, consider having a professional handle the installation, but the electrical part is straightforward.

Fix vs Replace

If your DRL fails, you have two main options: replace just the LED board or replace the entire headlight assembly. Electrically it is a straight swap on the BMW G60. The variable is the car's own lamp monitoring, which some owners have to code out to clear a dash warning. Replacing the LED board is a fraction of the cost of a new headlight assembly, takes about 1-2 hours, and allows you to keep your original housing, which is already paint-matched and aligned. For most owners, the LED board replacement is the practical choice.

Recommended Solution

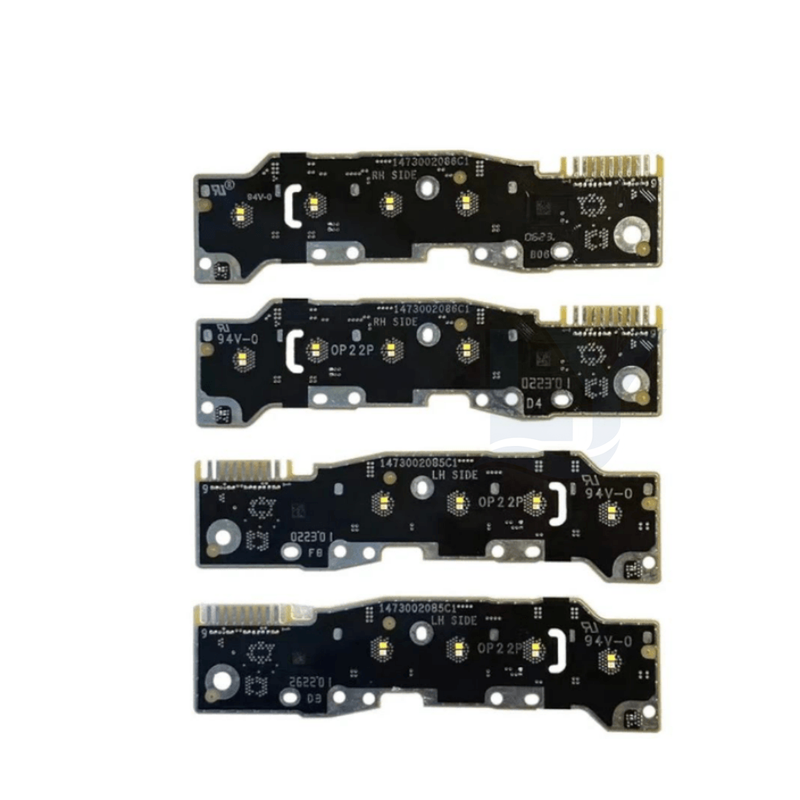

For a reliable fix, we recommend the BMW 5 Series G60 DRL LED Board (2024-2024). This board is pre-shipment QC checked and comes with a 1-year warranty. It's a direct fit for your G60, restoring your DRLs to full function without the expense of a new headlight assembly.

FAQ

Direct swap on the BMW G60 - no wiring. Some platforms log a fault until the DRL check is coded out, which surprises people, so plan for it.

A: Nothing is usually required on the BMW G60. Where a warning does appear it is the lamp self-check objecting to the new board, not a fault - coding the check off ends it.

Q: How long should I plan for?

A: Typically about 1-2 hours for a DIY install, depending on your experience and tools.

Q: One side only - is that fine?

A: Yes, you can replace only the faulty side, but it's often recommended to replace both if they are the same age to ensure consistent light output.

Q: What if my DRLs still don't work after replacement?

A: Check fuses and wiring; if the issue persists, there may be a problem with the control module or wiring harness, requiring further diagnosis.

Standards reference: for the BMW G60, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. A replacement board or guide puts the lamp back inside that specification.
