BMW F34 DRL Replacement Guide (2013-2019)

TL;DR

On the 2013-2019 BMW 3 Series Gran Turismo (F34), the daytime running lights (DRLs) commonly fail due to a combination of LED board degradation and yellowing of the plastic light guide strip. The fix is to replace the DRL light guide strip and LED board, which restores crisp, uniform illumination without replacing the entire headlight assembly.

What Is a DRL Light Guide and LED Board?

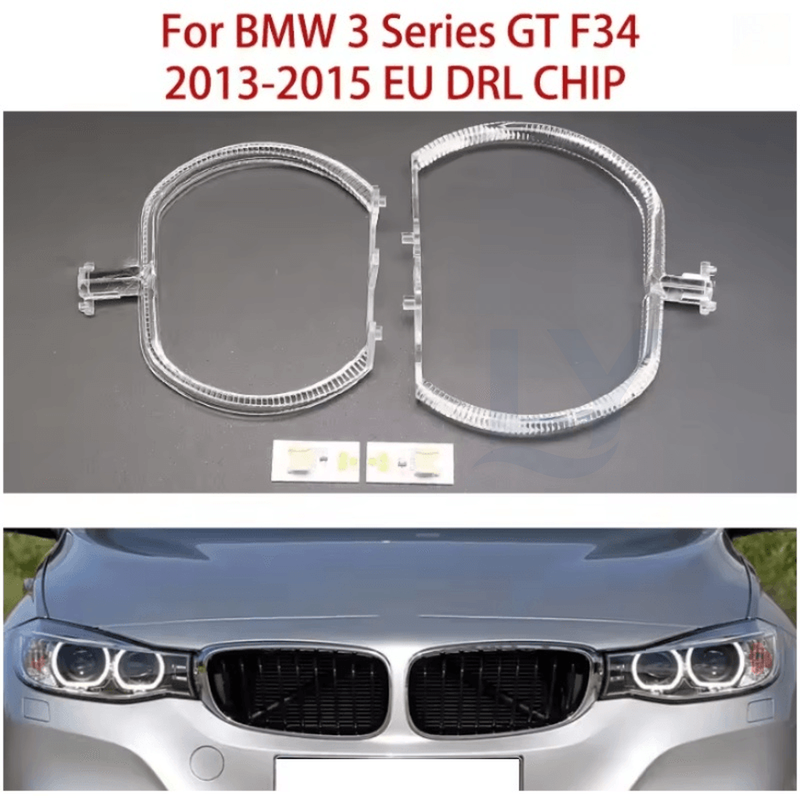

A DRL light guide is the clear plastic strip that channels light from the LED board to the front of the headlight, creating the distinctive BMW halo or corona ring effect. The LED board is the circuit board that houses the LEDs and powers the light guide.

Why DRLs Fail on the BMW F34

The F34's DRL system is exposed to constant heat cycling from the LEDs and the engine bay. Over time, this heat causes the LED board's solder joints to crack and the LEDs themselves to dim. Meanwhile, the plastic light guide suffers from UV exposure and heat, leading to yellowing and cloudiness. Moisture can also enter through compromised seals, accelerating corrosion on the LED board. These factors combine to produce dim, uneven, or completely non-functioning DRLs.

Diagnosing the Problem

Start by visually inspecting the DRLs with the lights on. Look for uneven brightness, a yellow tint, or dark spots. If one side is noticeably dimmer or has stopped working entirely, it's likely the LED board or light guide. Check for moisture inside the headlight housing, which can indicate a seal issue. A simple swap test—swapping the LED board from the working side to the faulty side—can confirm if the board is the culprit. If the problem follows the board, replace it; if not, the light guide may be the issue.

Step-by-Step Replacement

1. Disconnect the battery to avoid electrical issues. 2. Remove the headlight assembly: Depending on the model, you may need to remove the front bumper or just the headlight retaining screws. Consult your owner's manual for specific steps. 3. Access the DRL module: Once the headlight is out, remove the back cover to expose the LED board and light guide. 4. Remove the old LED board: Unplug the connector and unscrew or unclip the board. 5. Remove the light guide: Carefully detach the old light guide, noting how it sits in the housing. 6. Install the new light guide and LED board: Fit the new light guide into place, then connect the new LED board. Ensure all clips and screws are secure. 7. Reassemble: Put the headlight back together, reinstall it in the car, and reconnect the battery. 8. Test: Turn on the lights to confirm proper function. This job typically takes about 1-2 hours per side for a DIYer with basic tools.

Fitment Tips

Ensure you have the correct part for your F34. The DRL light guide and LED board are designed for 2016-2019 models, but always double-check compatibility with your specific year and trim. The BMW F34 takes the board without wiring changes, but BMW lamp diagnostics can flag it: a bulb-out warning or intermittent flicker that clears once the cold/warm check is coded out. Worth knowing before you start. Handle the light guide carefully to avoid scratches or cracks, and avoid touching the LEDs directly to prevent damage.

Fix vs Replace

Replacing the entire headlight assembly is a common alternative, but it's significantly more expensive. A new OEM headlight assembly from a dealer can cost well over a thousand dollars, while our DRL light guide and LED board kit offers a cost-effective solution. The kit is a fraction of the cost of a new headlight assembly. Plus, you keep your original housing, which maintains the factory look and fit. Install time is comparable, but the savings are substantial.

The Right Fix for Your F34

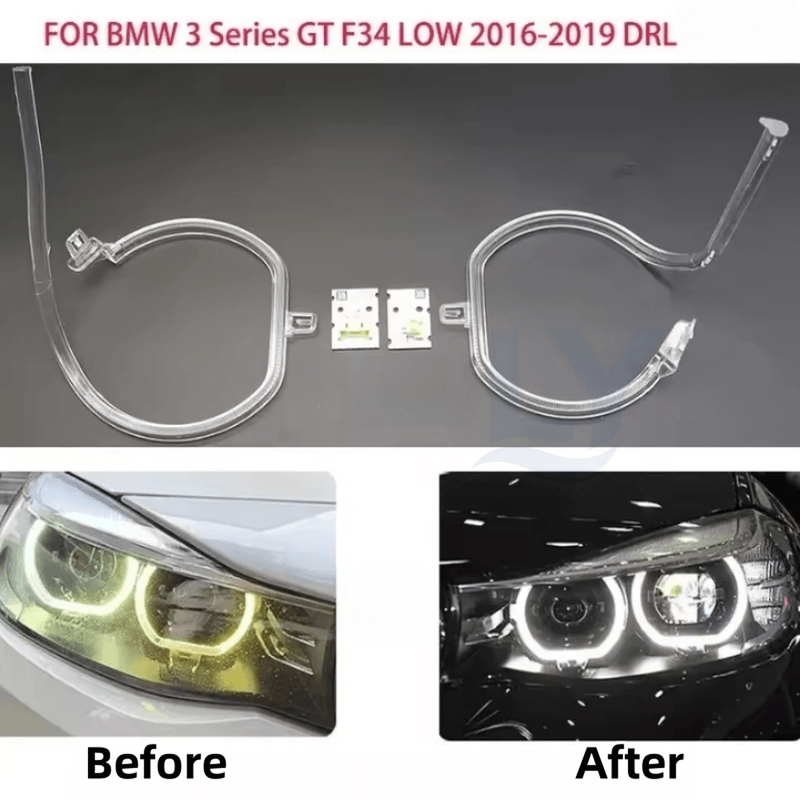

If your F34's DRLs are fading or have failed, the BMW 3 Series GT F34 DRL Light Guide Strip & LED Board (2016-2019) is the ideal solution. It's pre-shipment QC checked, backed by a 1-year warranty, and designed for easy installation. Restore your BMW's signature look without breaking the bank.

FAQ

Q: Will this fix work if only one DRL is out?

A: Yes, you can replace just the faulty side, but it's often recommended to replace both sides for consistent brightness and appearance.

Q: Do I need any special tools?

A: Basic hand tools like screwdrivers and trim removal tools are usually sufficient. Electrically it is a straight swap on the BMW F34. The variable is the car's own lamp monitoring, which some owners have to code out to clear a dash warning.

Q: What is the turnaround for fitting the parts?

A: For a DIYer, it typically takes about 1-2 hours per side, depending on experience and access.

Q: What cover do I get on this part?

A: Yes, the product comes with a 1-year warranty against defects.

Standards reference: for the BMW F34, the daytime running lamp is governed by UN ECE Regulation 148 (which superseded R87) in most markets and by FMVSS 108 in the United States - these define when the lamp runs and at what output. A replacement board or guide puts the lamp back inside that specification.
